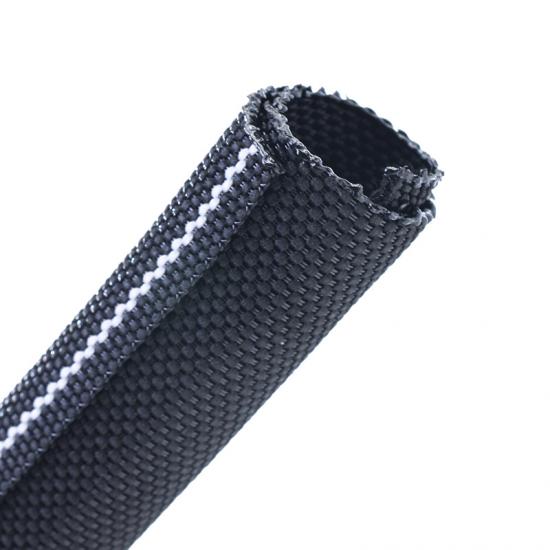

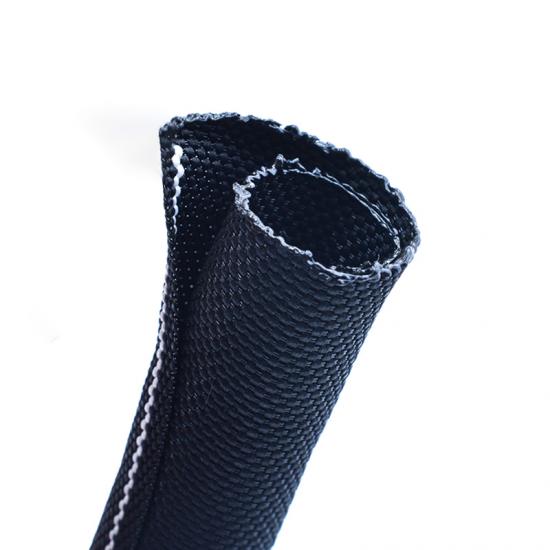

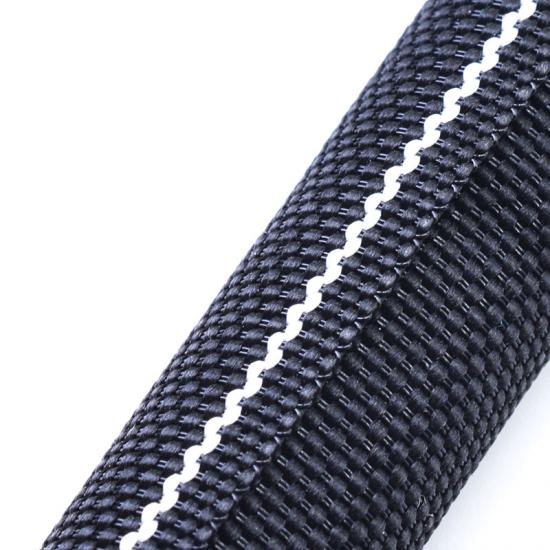

Electrical Polyester Split Wire Protective Sleeving with White Identification Line

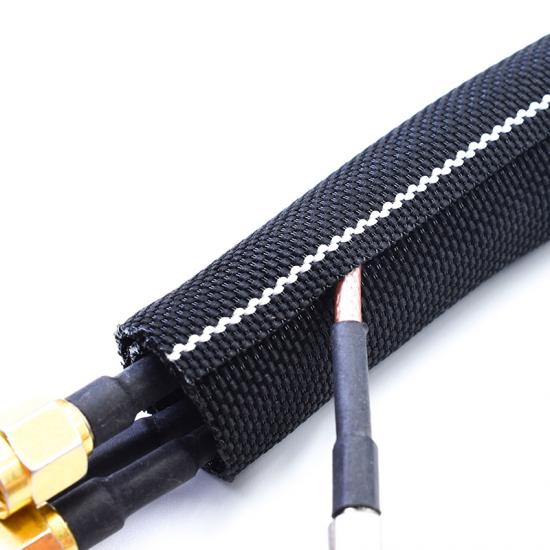

Self-closing split wrap sleeving is a braided sleeving widely used for the protection of wires, cables, hoses, etc. Its characteristics are that it automatically covers the wire harness through the self-winding function, which can provide good mechanical protection and wear resistance, and is easy to install and disassemble.
Due to the self-closing function, the sleeving can be automatically wound around the cable or hose without the use of additional tools or binding materials, and the installation process is very convenient. This design also makes the sleeving easy to remove and reinstall, especially suitable for applications that require frequent maintenance.
Self-closing sleeve wire protector has excellent flexibility and can easily adapt to the complex wiring path of the cable, and can be installed smoothly even in narrow spaces.
Certifications
What's Apecial about Electrical Polyester Split Wire Protective Sleeving?
1.Made of polyester multifilament+monofilament
2.Full coverage, self-wrapping design
3.Wear resistance
4.Halogen Free - RoHS compliant
5.Complied to HL2 according to the railway standard DIN EN45545-2
6.Acid and alkali resistance
7.Resists Common Chemicals, Solvents, and UV Damage
8.Cut and Abrasion Resistant
9.Split to allow breakouts and easy access

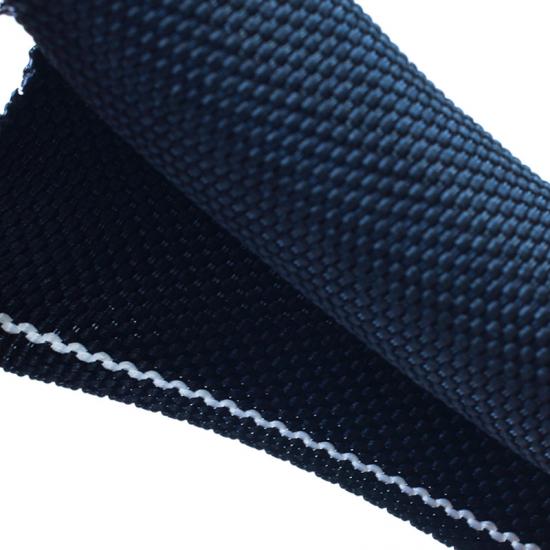

10.Woven material provides extra protection
Specification
| Part no. | Inner Dia | Max Harness Diameter | Roll Length/mtr |
| (mm) | (L) | ||
| MJ-WSTH-BW-005 | 5 | 6 | 100 |
| MJ-WSTH-BW-008 | 8 | 9 | 100 |
| MJ-WSTH-BW-010 | 10 | 11 | 100 |
| MJ-WSTH-BW-013 | 13 | 14 | 100 |
| MJ-WSTH-BW-016 | 16 | 17 | 100 |
| MJ-WSTH-BW-019 | 19 | 20 | 50 |
| MJ-WSTH-BW-025 | 25 | 27 | 25 |
| MJ-WSTH-BW-029 | 29 | 30 | 25 |
| MJ-WSTH-BW-032 | 31 | 34 | 25 |
| MJ-WSTH-BW-038 | 38 | 40 | 25 |
| MJ-WSTH-BW-050 | 50 | 52 | 25 |
Application
Polyester Split Wire Protective Sleeving has excellent flexibility and can adapt to complex wiring environments. It’s suitable for automobiles, electrical equipment, industrial automation and other fields, effectively extending the service life of cables and improving the safety and cleanliness of the system.
