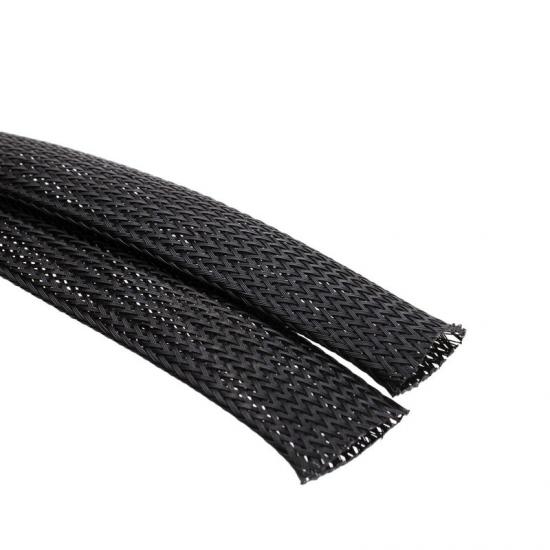

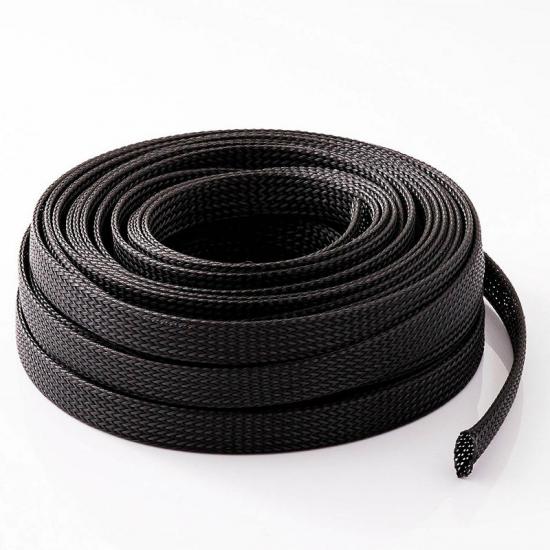

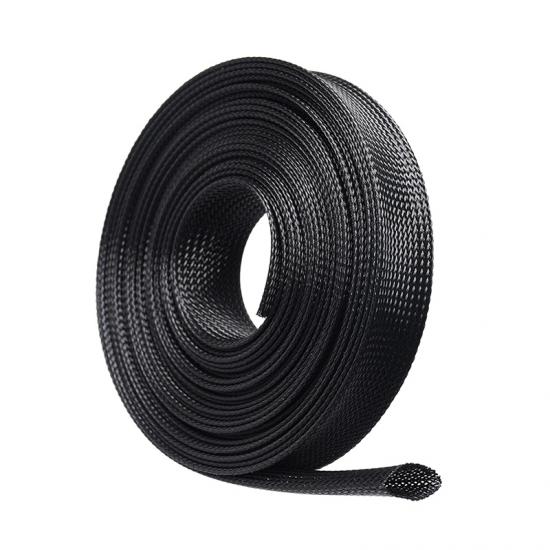

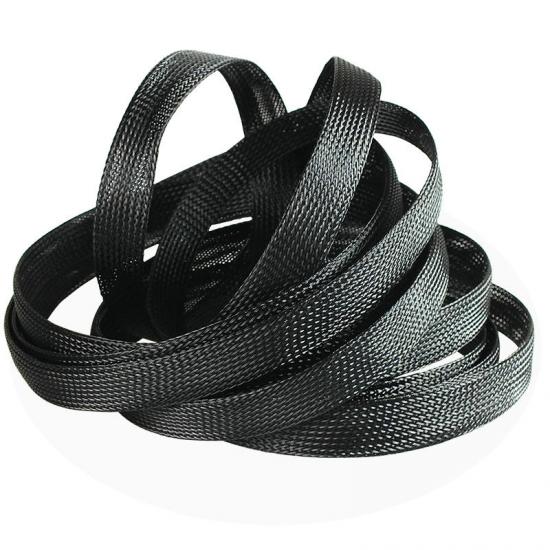

General Purpose PET Expandable Braided Cable Sleeving

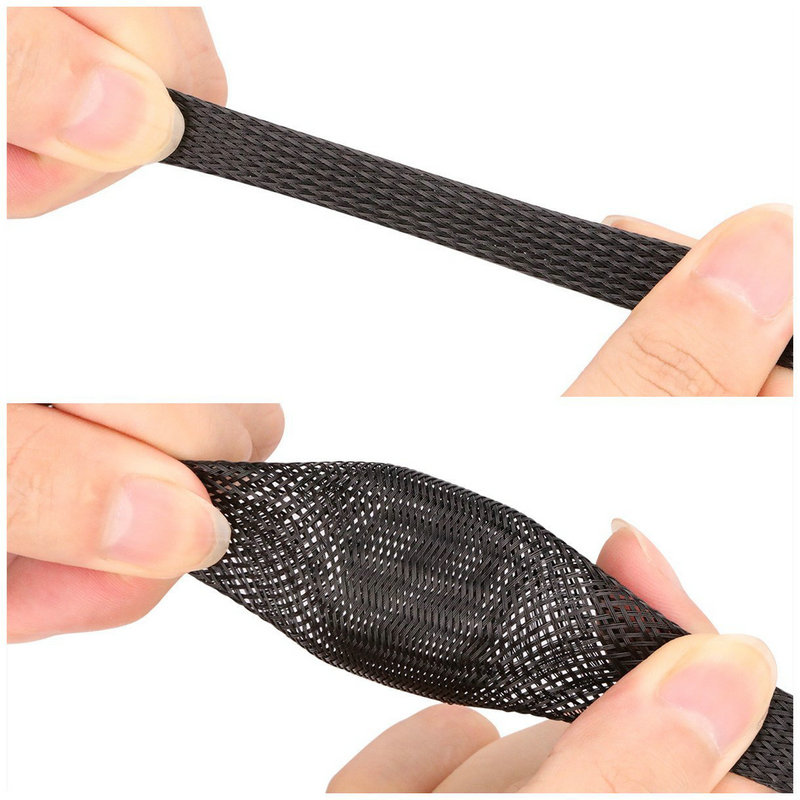

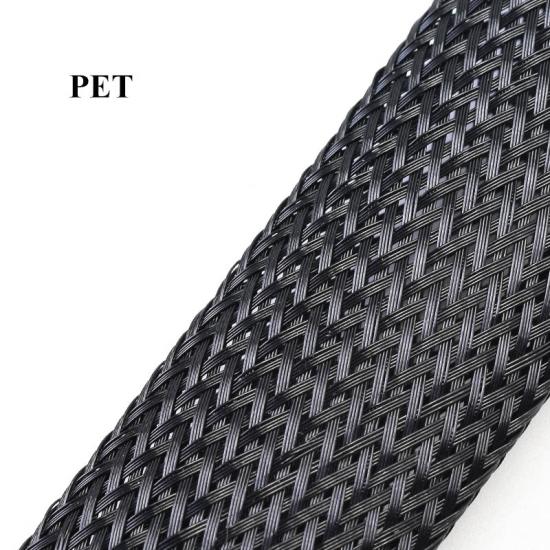

Pet braided sleeving made of 0.25mm thick PET monofilament.The special braid construction permits the sleeving to be expanded by up to 300%, with high abrasion resistance, allow quick and easy fitting over irregular components.
The pet monofilament are very flexible,flame retardant,UV resistance,resist most of oils, common fuels and solvents. It keep high performance in wide operating temperature range.
Braided cable sleeve popular used in electronics, automotive, marine and industrial wire harnessing applications where cost efficiency and durability are critical.
Certifications
What's Special about Purpose PET Expandable Braided Cable Sleeving?
1.Made of polyester monofilament
2.Flame retardant
3.Extremely lightweight
4..Keeps it's flexibility under a wide range of temperatures
5.Economical & easy to install
6.Resists gasoline, chemicals & cleaning Solvents
7.Expands Up to 150% of Initial Diameter
8.Cut & Abrasion Resistant
Specification
| Part No | Flat Width(W) | Expanded Range(mm) |
Wall
Thickness
(mm)
|
Packing

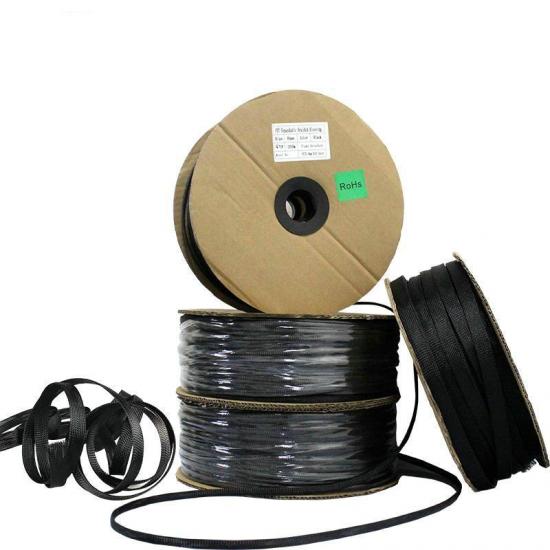

Length(m/spool)
|
||
| Inch | mm | Min.(I) | Max.(O) | |||
| MJ-PEBS003 | 1/8” | 3 | 1 | 6 | 0.65±0.05 | 500 |
| MJ-PEBS006 | 1/4” | 6 | 3 | 9 | 0.65±0.05 | 400 |
| MJ-PEBS008 | 5/ 16” | 8 | 5 | 12 | 0.65±0.05 | 400 |
| MJ-PEBS010 | 3/8” | 10 | 7 | 17 | 0.65±0.05 | 200 |
| MJ-PEBS012 | 1/2” | 12 | 8 | 20 | 0.65±0.05 | 200 |
| MJ-PEBS016 | 5/8” | 16 | 10 | 27 | 0.65±0.05 | 200 |
| MJ-PEBS020 | 3/4” | 20 | 14 | 30 | 0.65±0.05 | 200 |
| MJ-PEBS025 | 1” | 25 | 18 | 33 | 0.65±0.05 | 100 |
| MJ-PEBS032 | 1-1/4” | 32 | 20 | 50 | 0.65±0.05 | 100 |
| MJ-PEBS038 | 1-1/2” | 38 | 30 | 60 | 0.65±0.05 | 100 |
| MJ-PEBS045 | 1-3/4” | 45 | 35 | 75 | 0.65±0.05 | 50 |
| MJ-PEBS050 | 2” | 50 | 40 | 80 | 0.65±0.05 | 50 |
| MJ-PEBS064 | 2-1/2” | 64 | 45 | 105 | 0.65±0.05 | 50 |
| MJ-PEBS076 | 3'' | 76 | 64 | 120 | 0.65±0.05 | 50 |
Application
MJ expandable braided sleeving widely use for whenever a higher expansion rate is required.

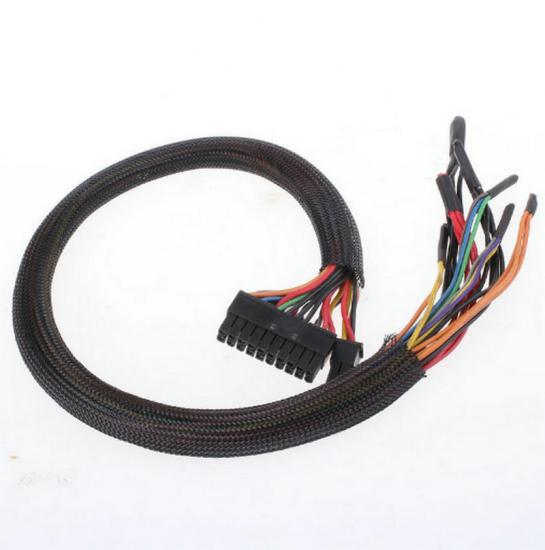

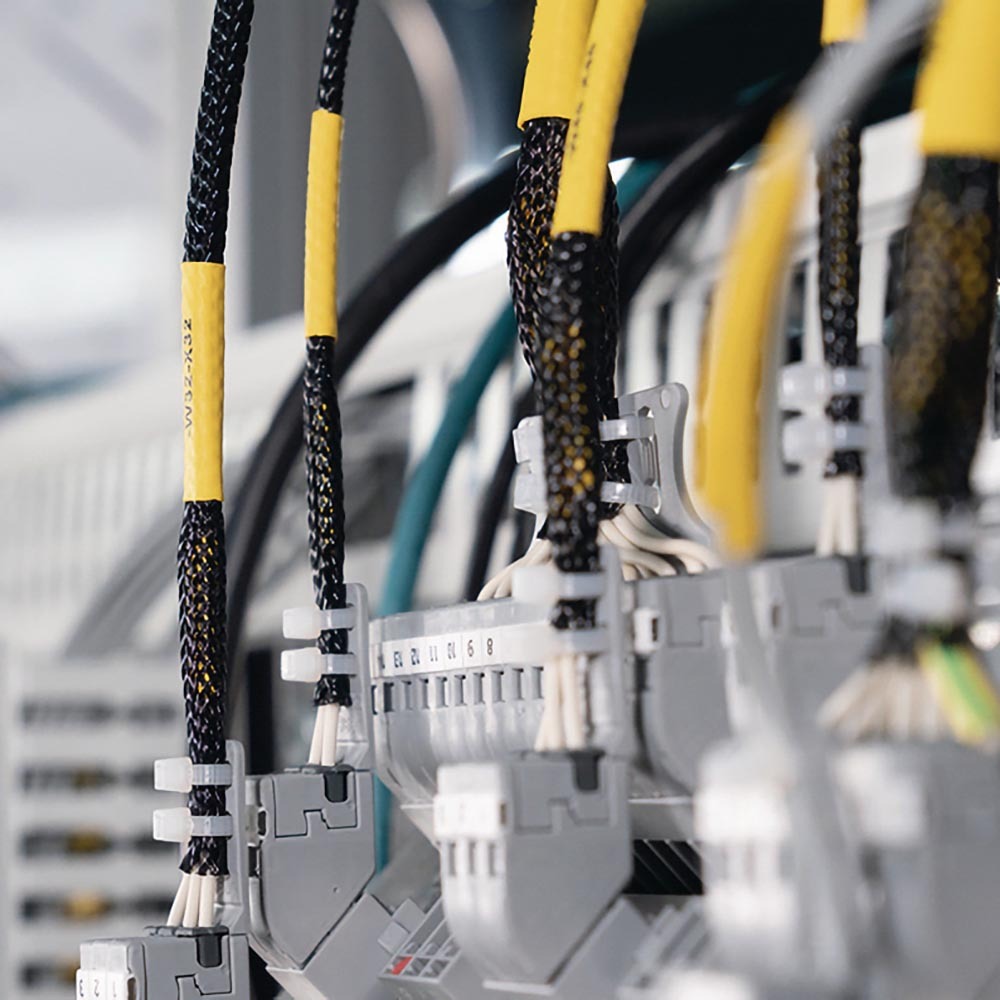

Expandable sleeve is a general purpose protective wire covering for industrial cable, A/V cable, Hdmi cable, wire harness, pneumatic hoses, hydraulic lines and highly polished or threaded machine parts.
