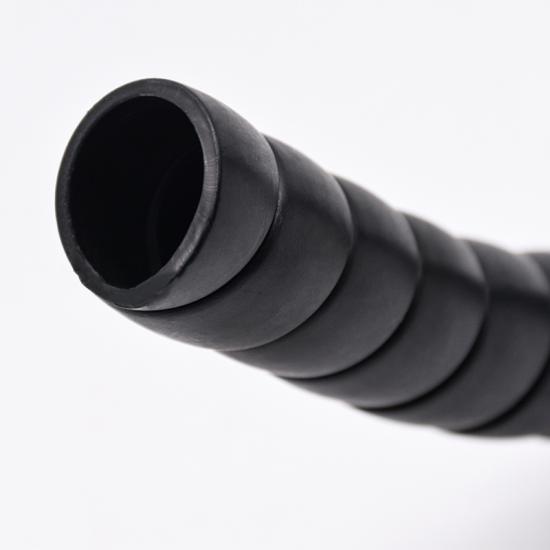

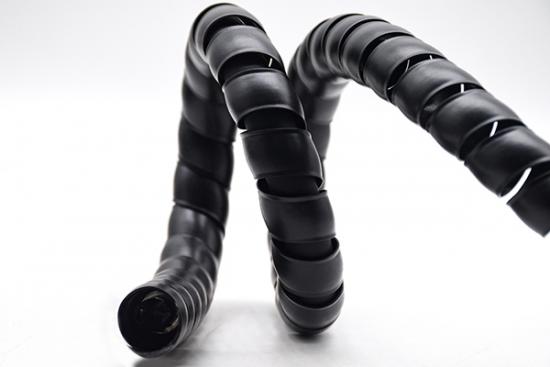

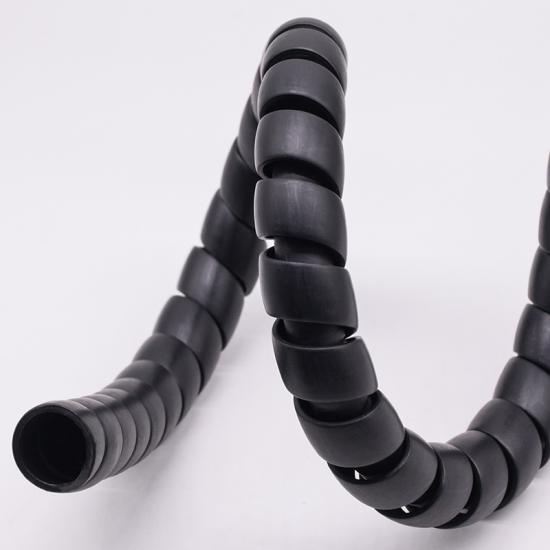

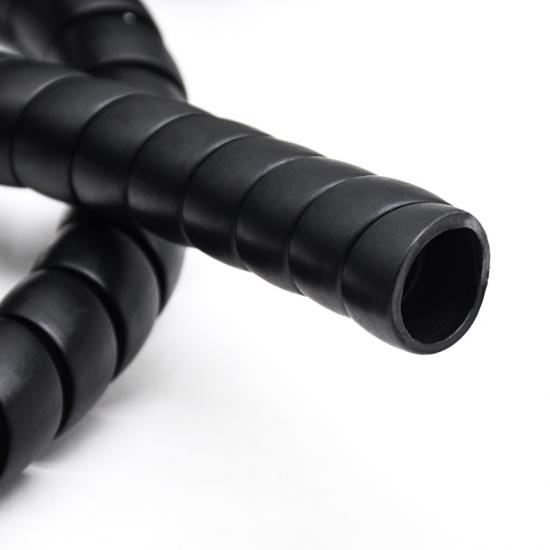

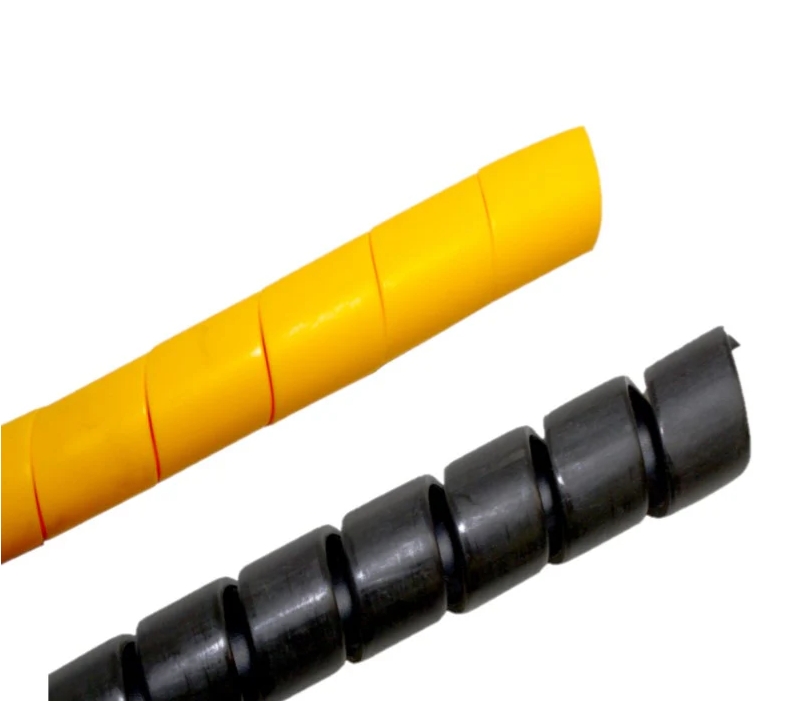

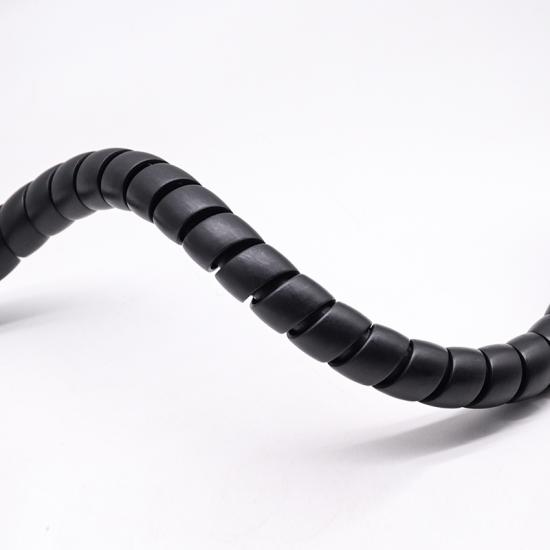

Hydraulic Hose Flat Spiral Protector Guard Plastic Wrap
Through adding spiral wrap on the outside of the product, Mainly used in the protection of hydraulic hose, pressure pipe and cable products.it has comprehensively improved the performance of wear-resisting, insulation, oil resistant and flame retardant, resistance to ultraviolet radiation, thus increased the service life of the product, and can have sorting, beautification effect.
What's the special about Flat Spiral Protector Hose Protector？
1.Flat Type
2.wear-resisting
3.flame retardant
4.oil resistant
5.resistance to ultraviolet radiation
Physical properties
| Material | Polypropylene (PP) |
|
Shape |
Flat Spiral |
| Working Temperature |
-40℃~+105℃ |
|
Tensile strength |
Room temperature ≥ 25Mpa, -40 ℃×24H≥30Mpa |
| Standard color | Black |
| Certification | ROHS |
Specification
| Part No |
ID
(mm)
|
OD
(mm)
|
Wall
Thickness
（mm）
|
Pitch
(mm)
|
Bundle Dia
(mm)
|
Packing
Length
(m/spool)
|
|
| HPS-PP-SX-8-BK-P | 8 | 10 | 1 | 12 | 8-12 | 2/20/50/100/200 | |
| HPS-PP-SX-10-BK-P | 10 | 12 | 1 | 12 | 10-14 | 2/20/50/100/200 | |
| HPS-PP-SX-12-BK-P | 12 | 14 | 1 | 12 | 12-16 | 2/20/50/100/200 | |
| HPS-PP-SX-14-BK-P | 14 | 16 | 1 | 13 | 14-18 | 2/20/50/100/200 | |
| HPS-PP-SX-16-BK-P | 16 | 18.8 | 1.4 | 14.5 | 16-20 | 2/20/50/100/200 | |
| HPS-PP-SX-18-BK-P | 18 | 21.2 | 1.6 | 15.5 | 18-22 | 2/20/50/100 | |
| HPS-PP-SX-19-BK-P | 19 | 22.2 | 1.6 | 15.5 | 19-22 | 2/20/50/100 | |
| HPS-PP-SX-21-BK-P | 21 | 24.6 | 1.8 | 18.5 | 21-25 | 2/20/50/100 | |
| HPS-PP-SX-22-BK-P | 22 | 25.6 | 1.8 | 18.5 | 22-25 | 2/20/50/100 | |
| HPS-PP-SX-25-BK-P | 25 | 28.6 | 1.8 | 21.5 | 25-30 | 2/20/50/100/150 | |
| HPS-PP-SX-26-BK-P | 26 | 29.6 | 1.8 | 21.5 | 26-30 | 2/20/50/100/150 | |
| HPS-PP-SX-28-BK-P | 28 | 31.8 | 1.9 | 22.5 | 28-32 | 2/20/50/100/150 | |
| HPS-PP-SX-30-BK-P | 30 | 34 | 2 | 23 | 30-35 | 2/20/50/100 | |
| HPS-PP-SX-32-BK-P | 32 | 36 | 2 | 23 | 32-38 | 2/20/50/100 | |
| HPS-PP-SX-35-BK-P | 35 | 39 | 2 | 24 | 35-40 | 2/20/50/100 | |
| HPS-PP-SX-38-BK-P | 38 | 42 | 2 | 24 | 38-43 | 2/20/50/100 | |
| HPS-PP-SX-40-BK-P | 40 | 45.6 | 2.8 | 25 | 40-45 | 2/20/50 | |
| HPS-PP-SX-42-BK-P | 42 | 48 | 3 | 26 | 42-48 | 2/20/50 | |
| HPS-PP-SX-45-BK-P | 45 | 51 | 3 | 27 | 45-50 | 2/20/50 | |
| HPS-PP-SX-48-BK-P | 48 | 54 | 3 | 27 | 48-52 | 2/20/50 | |
| HPS-PP-SX-50-BK-P | 50 | 56 | 3 | 27 | 50-55 | 2/20/50 | |
| HPS-PP-SX-51-BK-P | 51 | 57 | 3 | 27 | 51-66 | 2/20/50 | |
| HPS-PP-SX-60-BK-P | 60 | 66 | 3 | 26.5 | 60-65 | 2/20/50 | |
| HPS-PP-SX-63-BK-P | 63 | 69 | 3 | 27 | 63-70 | 2/20/50 | |
| HPS-PP-SX-68-BK-P | 68 | 74 | 3 | 30 | 68-72 | 2/10/20 | |
| HPS-PP-SX-74-BK-P | 74 | 84 | 5.2 | 47.5 | 74-80 | 2/10 | |
| HPS-PP-SX-80-BK-P | 80 | 89.0 | 4.5 | 40.5 | 80-85 | 2/10 | |
| HPS-PP-SX-88-BK-P | 88 | 98 | 5 | 43 | 88-95 | 2/10 | |
| HPS-PP-SX-100-BK-P | 100 | 110 | 5 | 45 | 100-110 | 2/10 | |

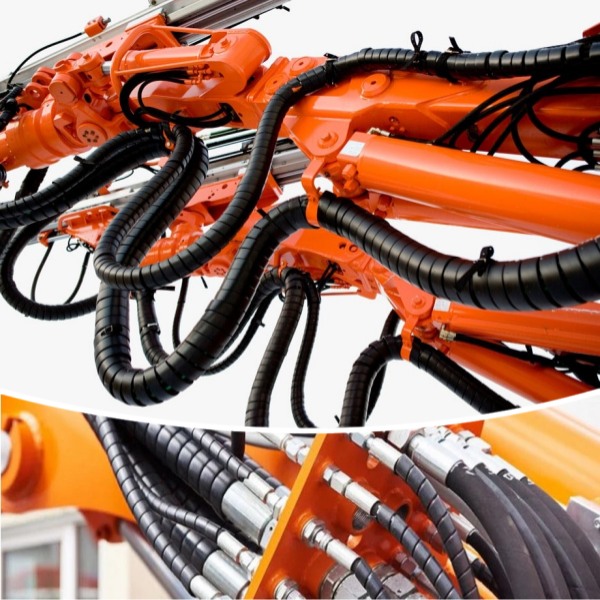

Application

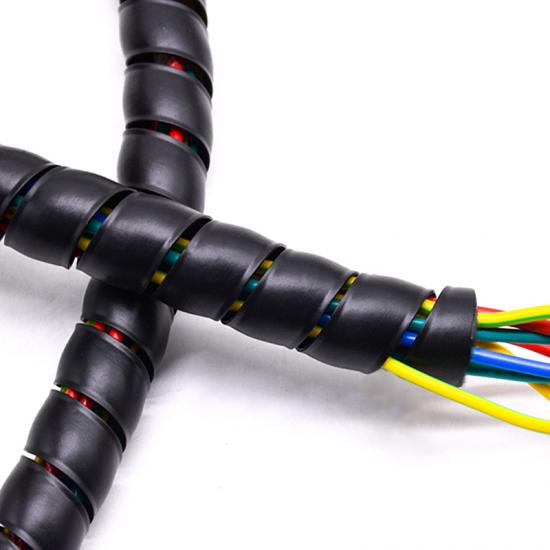

Flat Spiral Protector mainly used for the protection of hydraulic hose, air pressure pipeline and cable and other products. Through the external installation of the product, with wear resistance, oil resistance,compression resistance, impact resistance and other properties, so as to increase the service life of the product, and can play a role in finishing, beautification.
