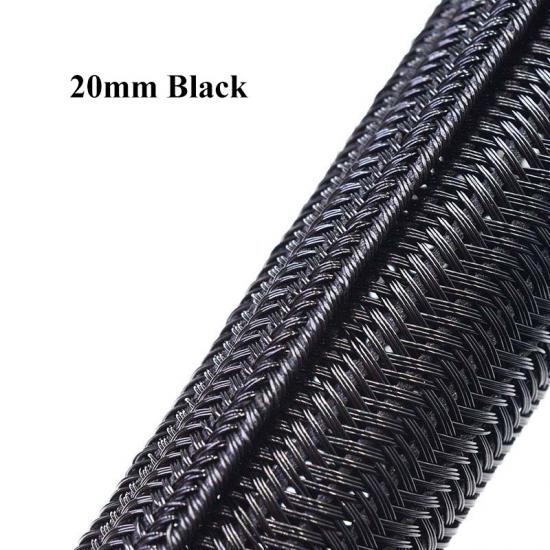

Self Wrap Around Braided Cable Sleeving

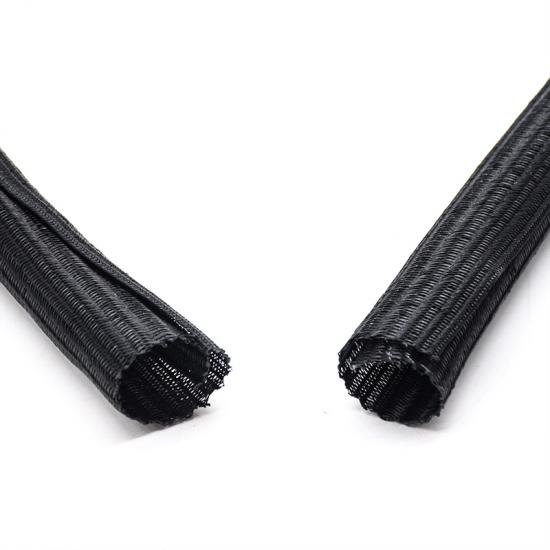

This unique laterally split, self wrap around braided cable sleeving is as easy to install as common corrugated loom, but provides much better cut and abrasion resistance and a more professional appearance.
The monoifilament braid is lighter weight and more flexible than corrugated loom and does not trap moisture inside. It is also highly resistant to petroleum based fluids and is unaffected by exposure to UV light. Rated for continuous operation from -75°C to 125°C (-103°F to 257°F). The 1" nominal diameter allows for a 25% overlap.
Certifications
What's Special about Self Wrap Around Braided Cable Sleeving?
1.Made of PET filament
2.Flammability: UL94 V0
3.Extremely lightweight

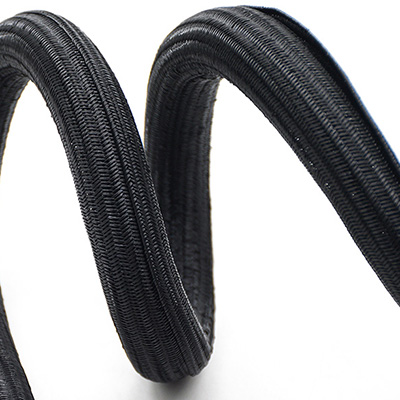

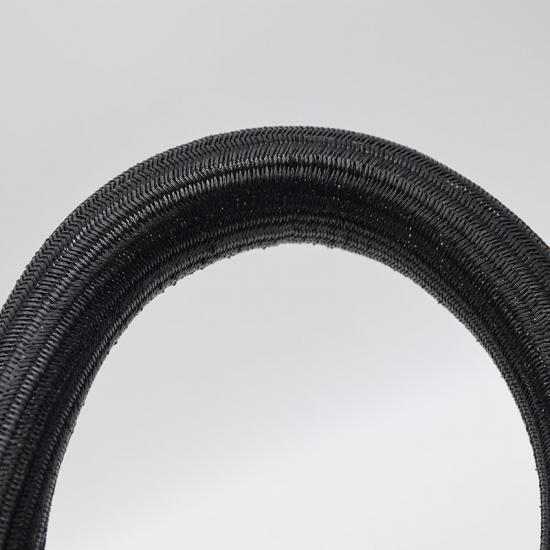

4.Keeps it's flexibility under a wide range of temperatures
5.Easy, cost and labor effective installation
6.Resists gasoline, chemicals & cleaning Solvents
7.25% overlap designed to keep wires fully covered
8.Cut & Abrasion Resistant
Specification
P/N | Nominal ID (mm) | Max.function ID (mm) | Standard package (M/R) |
MJ-SPBS003 | 3 | 3.5 | 300 |
MJ-SPBS006 | 6 | 7 | 100 |
MJ-SPBS010 | 10 | 11 | 100 |
MJ-SPBS013 | 13 | 14 | 50 |
MJ-SPBS016 | 16 | 17 | 25 |
MJ-SPBS019 | 19 | 21 | 25 |
MJ-SPBS025 | 25 | 27 | 25 |
MJ-SPBS029 | 29 | 30 | 25 |
MJ-SPBS032 | 32 | 33 | 25 |
MJ-SPBS038 | 38 | 40 | 25 |
MJ-SPBS050 | 50 | 50 | 25 |
Application

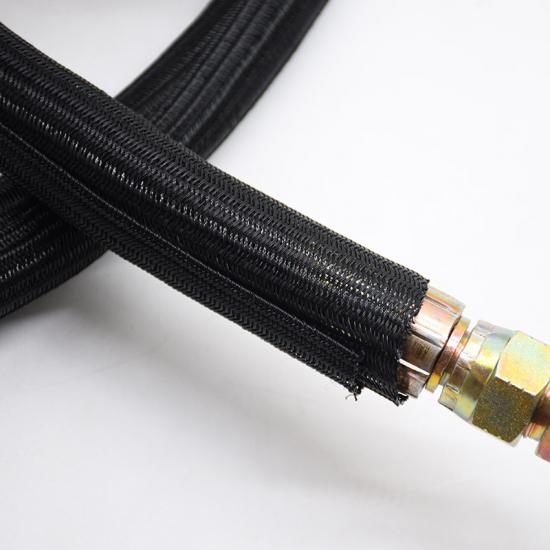

With its superior performance and ease of installation, self wrap around braided cable sleeving has become an ideal choice for protecting cables and pipes in the automotive industry, rail transit, industrial equipment and other industries, significantly improving the safety and reliability of the system.
