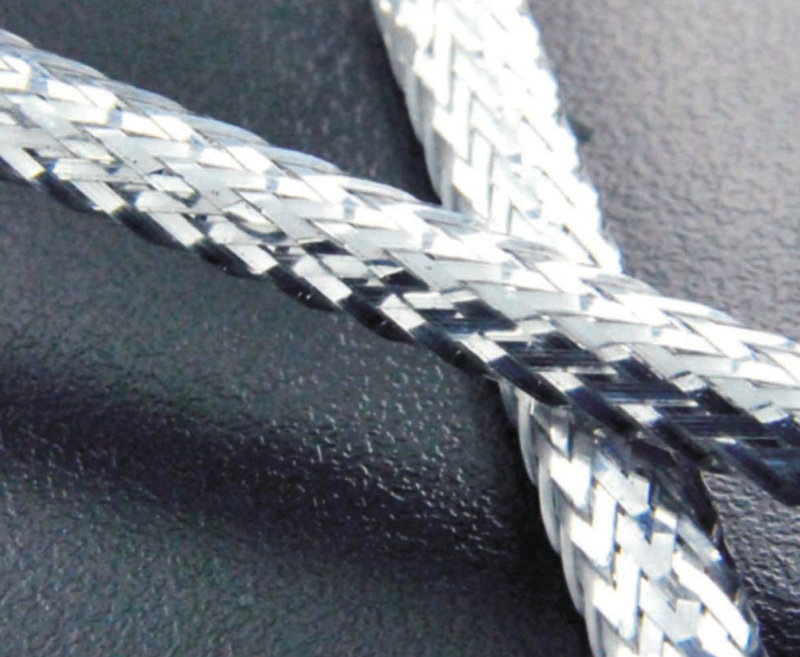

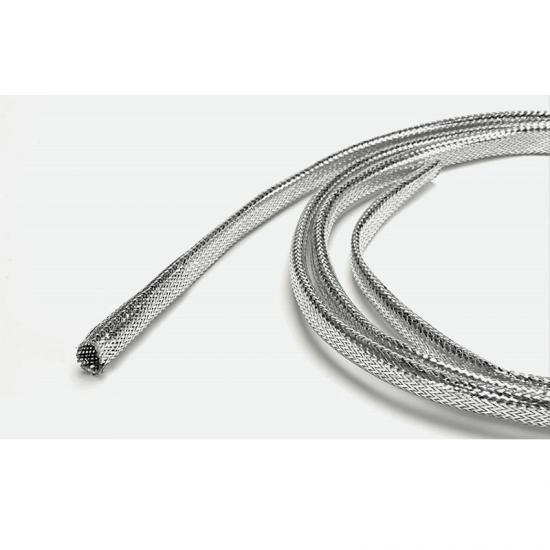

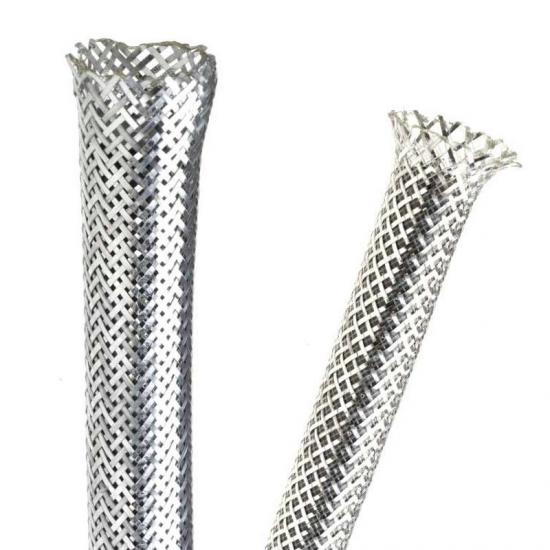

Chrome Metallic Expandable Braided Sleeve
Metallic braided sleeve made of polyester with dazzling metallic look, it provides full coverage with no transparent elements in the braided construction and reflect light, smooth, flexible and continuous metallic shine.
What's the special of our chrome sleeve
1.UV resistant
2.Easy to install, light weight, and flexible
3.Resists common chemicals & solvents
4.Expands up to 150%
5.Loose braid allows application to ahow through
6.Conductive mylar for shielding applications
7.Cuts easily with hot knife
Physical Properties
| Material | Polyester |
| Working temperature |
-50℃~+150℃ |
| Melt point |
240±10℃ |
|
Flammability |
VW-1 |
| Standard color | Silver |
| Size range | 6mm~38mm |
|
Certificated |
Rohs |
| Cutting tool | Hot knife |
Application

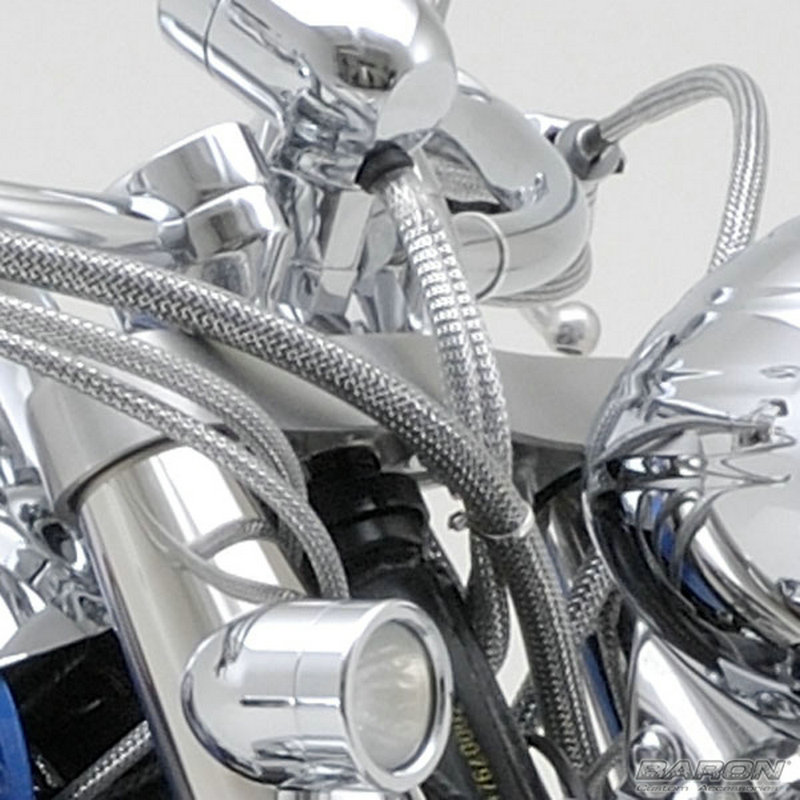

Chrome XC braided sleeve commonly used over the cables, wires, tubes and nonmetallic objects to provide a durable protection and metallic appearance in motorbike, racing car etc.
Specification
| Part No | Size(mm) | Expanded Range(mm) | Packing Length | |
| Min(I) | Max(O) | |||
| MJ-CMBS006 | 6.0 | 5.0 | 8.0 | 300m/spool |
|
MJ-CMBS008 |
8.0 | 7.0 | 10.0 |
300m/spool |
|
MJ-CMBS012 |
12.0 | 10.0 | 16.0 |
300m/spool |
|
MJ-CMBS019 |
19.0 | 18.0 | 26.0 | 100m/spool |
|
MJ-CMBS032 |
32.0 | 31.0 | 42.0 |
100m/spool |
|
MJ-CMBS038 |
38.0 | 37.0 | 49.0 |
100m/spool |
