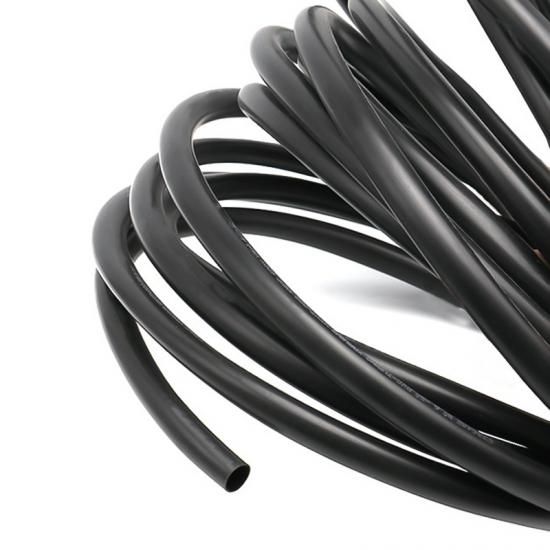

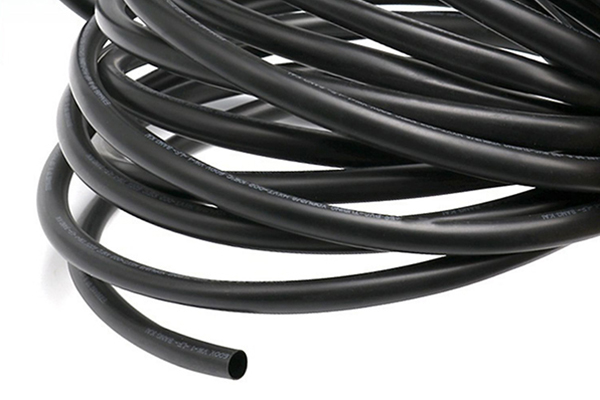

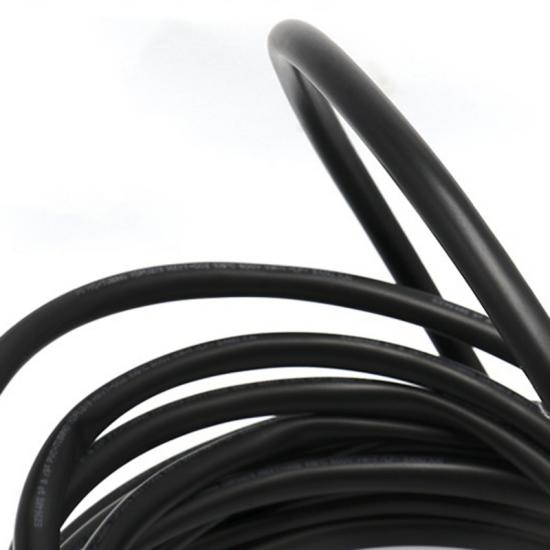

PVC flexible wire cable sleeve
PVC wrap for automotive wire harness designed primarily for the insulation of electrical conductors and connections of electrical apparatus.
What's special about PVC sleeving?

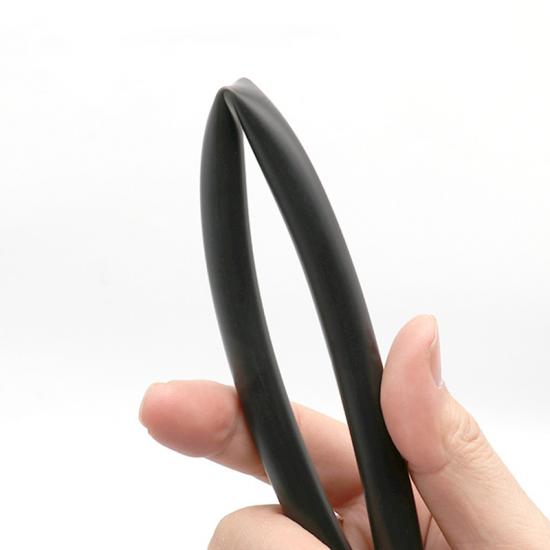

1.Good flexibility
2.High strength
3.Extremely durable
4.NON-Heat Shrinkable PVC Sleeve
5.Used for cable insulation, Wire bunching
Certifications
Specification
| Item No. |
Inner diameter
(mm)
|
Tolerance
（mm）
|
Thickness
(mm)
|
Packing
(m/spool)
|
| MJ-CS-PVC-003 | 3.0 | -0.3~+0.4 | 0.50±0.05 | 300 |
| MJ-CS-PVC-004 | 4.0 | -0.3~+0.4 | 0.50±0.05 | 300 |
| MJ-CS-PVC-005 | 5.0 | -0.3~+0.4 | 0.50±0.05 | 300 |
| MJ-CS-PVC-006 | 6.0 | -0.4~+0.6 | 0.50±0.05 | 200 |
| MJ-CS-PVC-007 | 7.0 | -0.4~+0.6 | 0.50±0.05 | 200 |
| MJ-CS-PVC-008 | 8.0 | -0.4~+0.6 | 0.50±0.05 | 200 |
| MJ-CS-PVC-009 | 9.0 | -0.5~+1.0 | 0.50±0.05 | 100 |
| MJ-CS-PVC-010 | 10.0 | -0.5~+1.0 | 0.50±0.05 | 100 |
| MJ-CS-PVC-011 | 11.0 | -0.5~+1.0 | 0.50±0.05 | 100 |
| MJ-CS-PVC-012 | 12.0 | -0.5~+1.0 | 0.50±0.05 | 100 |
Application
Insulation protection for electrical appliances,transformers,motors,lighting,lead wire,electronic components,automotive wiring harness.
