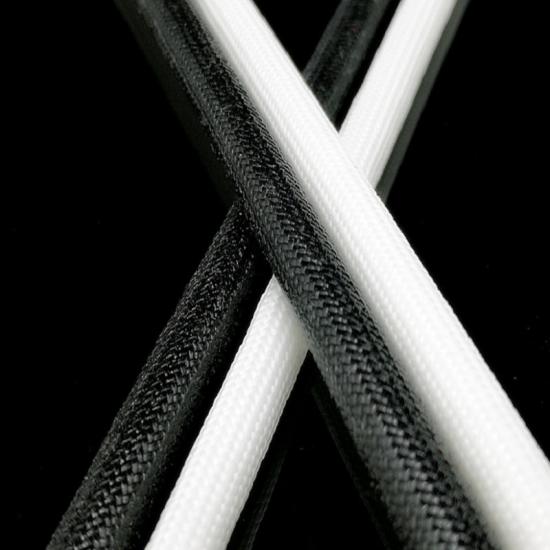

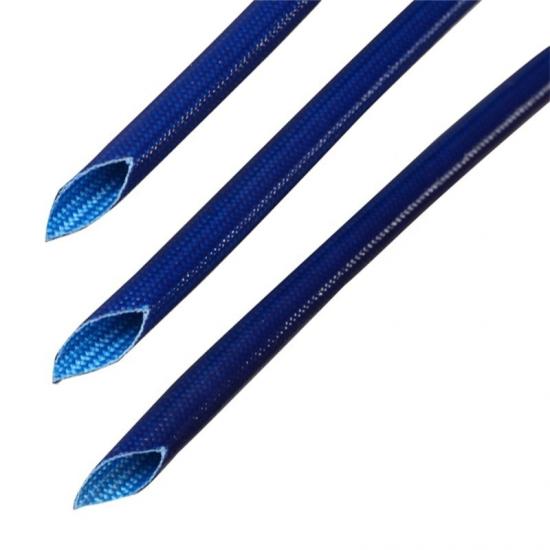

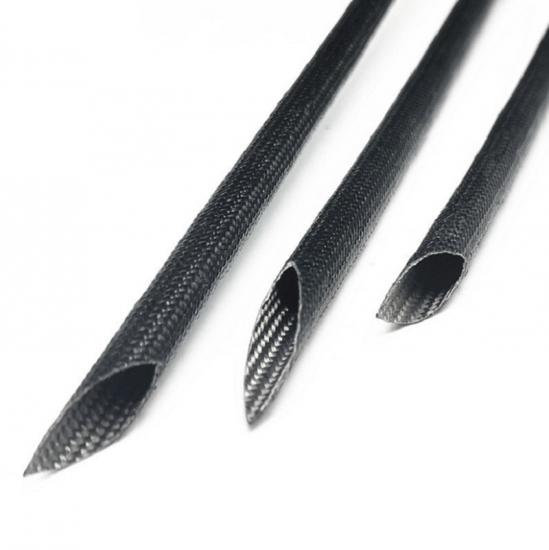

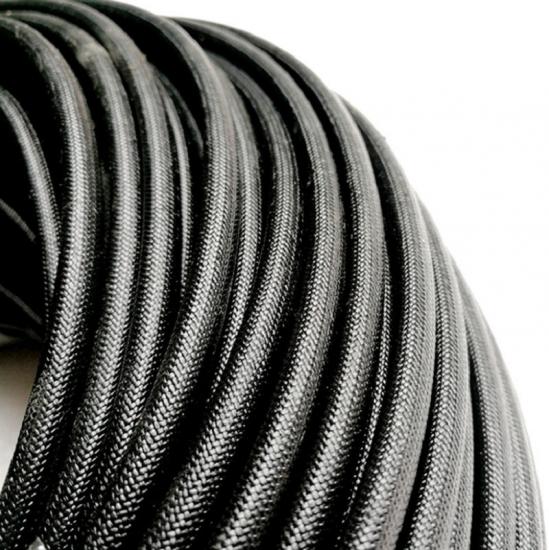

Acrylic Coated Fiberglass Insulation Sleeving
Acrylic coated fiberglass sleeving is a heat-treated, tightly braided fiberglass sleeving coated with a dielectric acrylic resin. This durable sleeving will withstand mechanical stress and holds it's dielectric strength on all bends.
It has excellent flexibility, cut-through and mechanical abrasion resistance and is rated class 155ºC electrically. Acrylic sleeving is the work-horse of the motor, transformer and lighting industries.
Certifications
Feactures and benefits
1.155° C temperature rating
2.Resists solvents and engine fluids
3.Lightweight and flexible
4.Cuts easily with scissors
5.High abrasion resistance
6.Contains no asbestos
7.Non-corrosive to metals
8.Excellent resistance to moisture, fungus and chemical attack
9.Grade A, Grade C Dielectric strength
Physical Properties
| Sleeve material | Fiberglass fiber |
| Coated material | Acrylic resin |
| Working Temperature |
-50℃ to 155℃ |
| Temperature endurance | 190℃+(-)2℃ |
| Aging Test | 6 hours without crackle |
| Cold bend | Without crackle |
|
Grade |
Grade A,Grade B,Grade C |
|
Flammability |
VW-1 |
| Standard Color | White,Black |

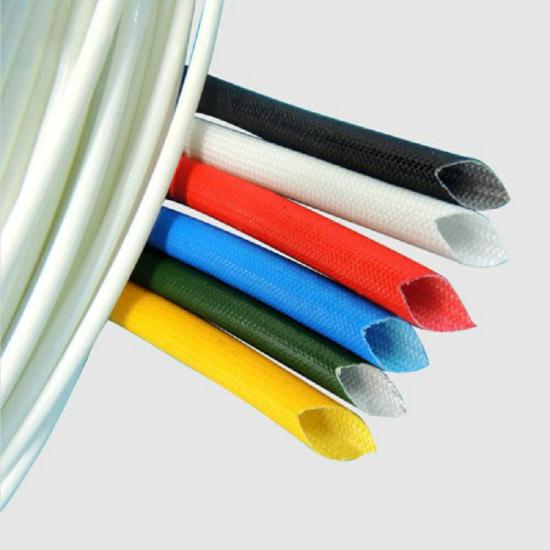

| Colored | Available |
| Certification | UL,ROHS,Reach |
| Cutting Tool | Scissor |
Specification
Part No
Size
ID
(mm)
ID
Tolerance
(mm)
Wall Thickness(T)
(mm)
Packing
Length
(m/spool)
1.5KV
2.5KV
4KV
7KV
MJ-FGS-0.5
0.5
+0.20/-0.0
0.28±0.05
0.30±0.05
0.40±0.05
0.45±0.08
200
MJ-FGS-0.8
0.8
+0.20/-0.0
0.28±0.05
0.30±0.05
0.40±0.05
0.45±0.08
200
MJ-FGS-1.0
1.0
+0.20/-0.0
0.28±0.05
0.30±0.05
0.40±0.05
0.45±0.08
200
MJ-FGS-1.5
1.5
+0.20/-0.0
0.28±0.05
0.30±0.05
0.40±0.05
0.50±0.08
200
MJ-FGS-2.0
2.0
+0.20/-0.0
0.28±0.05
0.30±0.05
0.40±0.05
0.50±0.08
200
MJ-FGS-2.5
2.5
+0.25/-0.0
0.30±0.05
0.35±0.05
0.45±0.05
0.55±0.08
200
MJ-FGS-3.0
3.0
+0.25/-0.0
0.30±0.05
0.35±0.05
0.45±0.05
0.55±0.08
100
MJ-FGS-3.5
3.5
+0.35/-0.0
0.30±0.05
0.35±0.05
0.45±0.05
0.55±0.08
100
MJ-FGS-4.0
4.0
+0.35/-0.0
0.30±0.05
0.35±0.05
0.45±0.05
0.55±0.08
100
MJ-FGS-4.5
4.5
+0.35/-0.0
0.30±0.05
0.35±0.05
0.45±0.05
0.55±0.08
100
MJ-FGS-5.0
5.0
+0.35/-0.0
0.30±0.05
0.35±0.05
0.45±0.05
0.55±0.08
100
MJ-FGS-5.5
5.5
+0.35/-0.0
0.30±0.05
0.35±0.05
0.45±0.05
0.55±0.08
100
MJ-FGS-6.0
6.0
+0.50/-0.0
0.35±0.05
0.40±0.05
0.55±0.05
0.60±0.08
100
MJ-FGS-6.5
6.5
+0.50/-0.0
0.35±0.05
0.40±0.05
0.55±0.05
0.60±0.08
100
MJ-FGS-7.0
7.0
+0.50/-0.0
0.35±0.05
0.40±0.05
0.55±0.05
0.60±0.08
100
MJ-FGS-7.5
7.5
+0.50/-0.0
0.35±0.05
0.40±0.05
0.55±0.05
0.60±0.08
100
MJ-FGS-8.0
8.0
+0.50/-0.0
0.35±0.05
0.40±0.05
0.55±0.05
0.60±0.08
50
MJ-FGS-8.5
8.5
+0.50/-0.0
0.35±0.05
0.40±0.05
0.55±0.05
0.60±0.08
50
MJ-FGS-9.0
9.0
+0.50/-0.0
0.35±0.05
0.40±0.05
0.55±0.05
0.60±0.08
50
MJ-FGS-10.0
10.0
+0.70/-0.0
0.45±0.05
0.50±0.05
0.60±0.05
0.65±0.08
50
MJ-FGS-11.0
11.0
+0.70/-0.0
0.45±0.05
0.50±0.05
0.60±0.05
0.65±0.08
50
MJ-FGS-12.0
12.0
+0.70/-0.0
0.45±0.05
0.50±0.05
0.60±0.05
0.65±0.08
50
MJ-FGS-13.0
13.0
+0.80/-0.0
0.45±0.05
0.50±0.05
0.60±0.05
0.65±0.08
50
MJ-FGS-14.0
14.0
+0.80/-0.0
0.45±0.05
0.50±0.05
0.60±0.05
0.65±0.08
50
MJ-FGS-15.0
15.0
+0.80/-0.0
0.45±0.05
0.50±0.05
0.60±0.05
0.65±0.08
50
MJ-FGS-16.0
16.0
+0.80/-0.0
0.45±0.05
0.50±0.05
0.60±0.05
0.65±0.08
50
MJ-FGS-17.0
17.0
+0.80/-0.0
0.53±0.08
0.55±0.08
0.65±0.10
0.70±0.10
50
MJ-FGS-18.0
18.0
+0.80/-0.0
0.53±0.08
0.55±0.08
0.65±0.10
0.70±0.10
50
MJ-FGS-19.0
19.0
+0.80/-0.0
0.53±0.08
0.55±0.08
0.65±0.10
0.70±0.10
50
MJ-FGS-20.0
20.0
+0.80/-0.0
0.53±0.08
0.55±0.08
0.65±0.10
0.70±0.10
50
MJ-FGS-22.0
22.0
+1.00/-0.0
0.60±0.08
0.65±0.10
0.75±0.10
0.80±0.10
25
MJ-FGS-25.0
25.0
+1.00/-0.0
0.53±0.05
0.65±0.10
0.75±0.10
0.80±0.10
25
Application
Acylic fiberglass sleeving used in applications such as relays, radio circuits, transformers, and lead/crossover protection on motors. Highly resistant to acids and solvents, and will withstand tough assembly handling.
