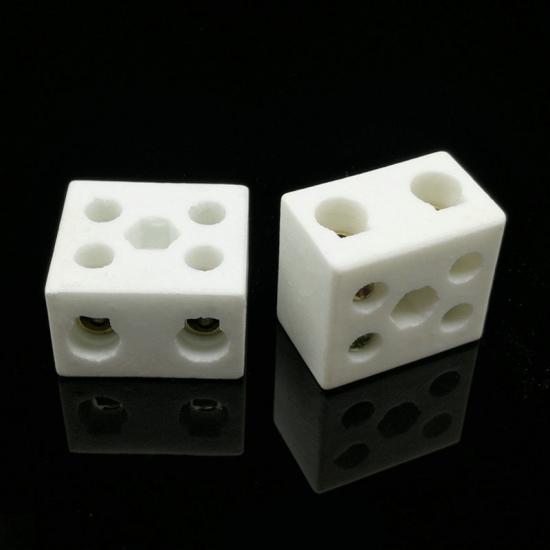

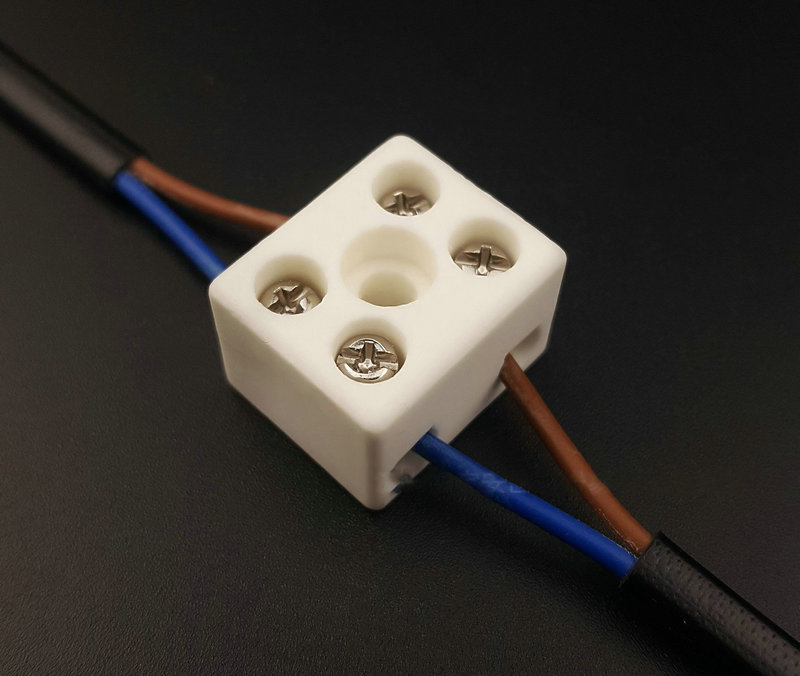

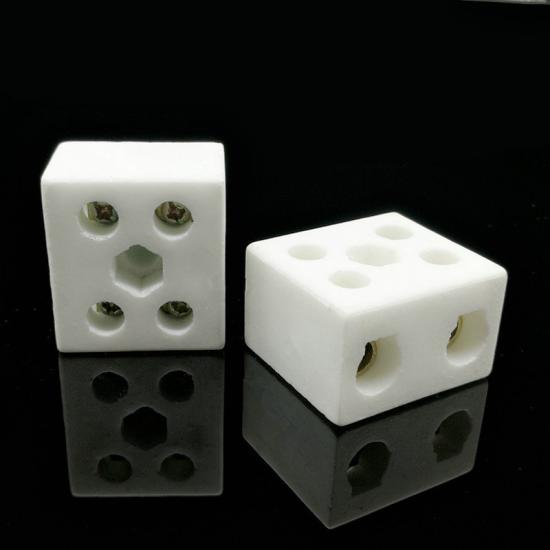

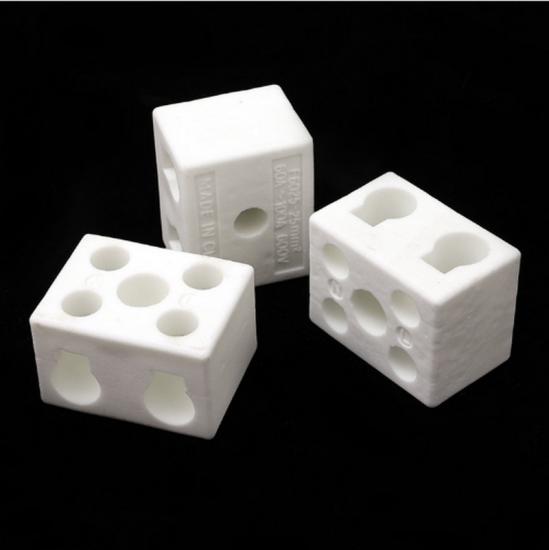

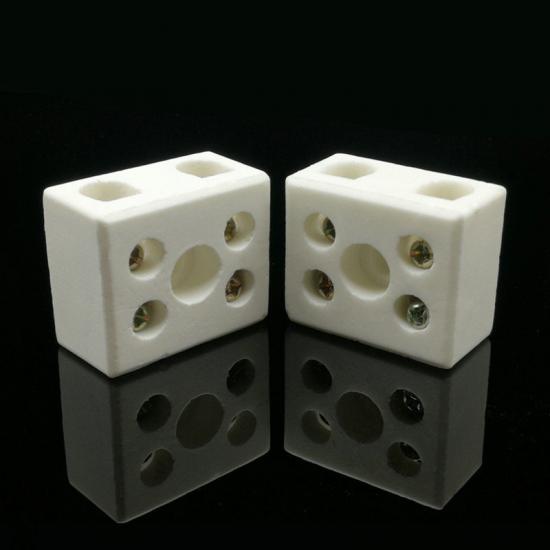

2 Pole High Temperature Ceramic Terminal blocks

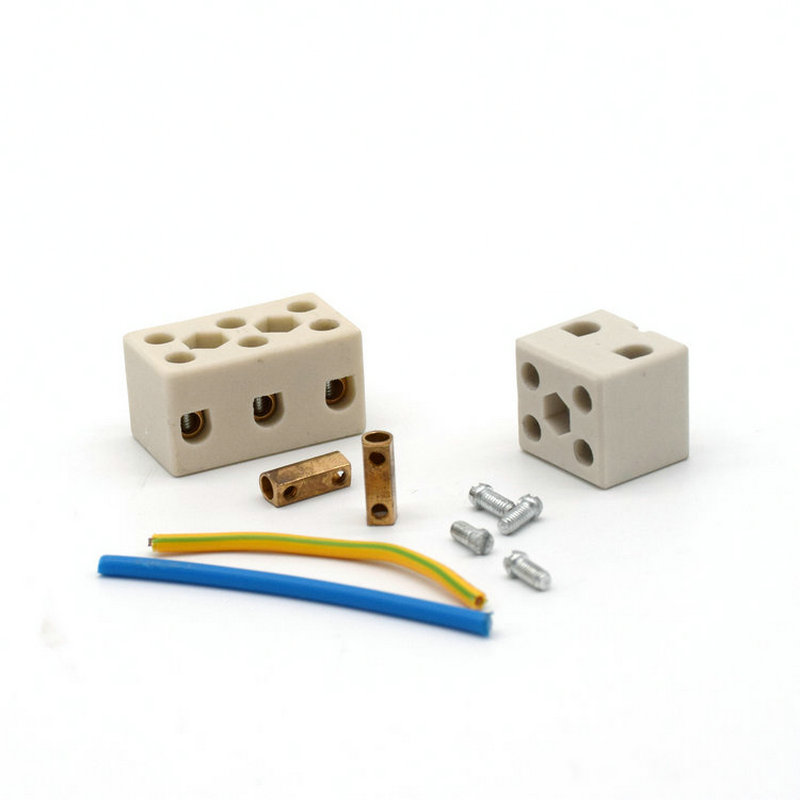

Ceramic connector block made of alumina or talc porcelain with brass conductor and zinc plated steel screws, which can withstand high temperature test.
Hot stamping process manufacturing, can control the customer required tolerance range, size precision is very accurate
It has anti-aging, high temperature resistance, good insulation performance, high strength and good stability, suitable for different environments and meets the requirements of mechanical equipment wiring in harsh temperature environment.
What's the special of our high temp ceramic terminal block
1.Ceramic material
2.Long service life
3.Good electrrical insulation
4.High temperature resistant
5.Good shock resistant
Physical properties
| Style | High temperature terminal block |
| Shell material |
High-frequency ceramic |
| Conductor | Brass |
| Screws | Steel,zinc plated |
| Working termperature |
-40℃ ~+425℃ |
| Standard color | White |
Specification
| Part No | Wire Range | Amp | Volt | L | W | H |
Φ |
Screw Size |
Packing |
|
mm |
|||||||||
| SP023-01-2P | 6.0~10.0m㎡ | 10A | 250V~450V | 21 | 18 | 15 | 4.2 | M3.0 | 2000 pcs/ctn |
|
SP023-02-3P |
6.0~10.0m㎡ |
10A |
250V~450V |
33 | 18 | 15 | 4.2 |
M3.0 |
2000 pcs/ctn |
|
SP023-03-2P |
12.0~14.0m㎡ |
20A |
250V~450V |
24 | 22 | 21 | 4.5 |
M3.5 |
2000 pcs/ctn |
|
SP023-04-3P |
12.0~14.0m㎡ |
20A |
250V~450V |
38 | 22 | 21 | 4.5 |
M3.5 |
2000 pcs/ctn |
|
SP023-05-2P |
25m㎡ |
60A |
250V~450V |
34 | 30 | 23 | 6.3 |
M4.0 |
2000 pcs/ctn |
|
SP023-06-3P |
25m㎡ |
60A |
250V~450V |
53 | 30 | 23 | 6.3 |
M4.0 |
2000 pcs/ctn |
Application
Ceramic terminal block connector usually used in various terminal situations with high ambient temperature and strict requirements, such as high-grade socket power line connection and socket for special industries, power supply, transformer, instrument, instrument, television, automobile and other equipment.
