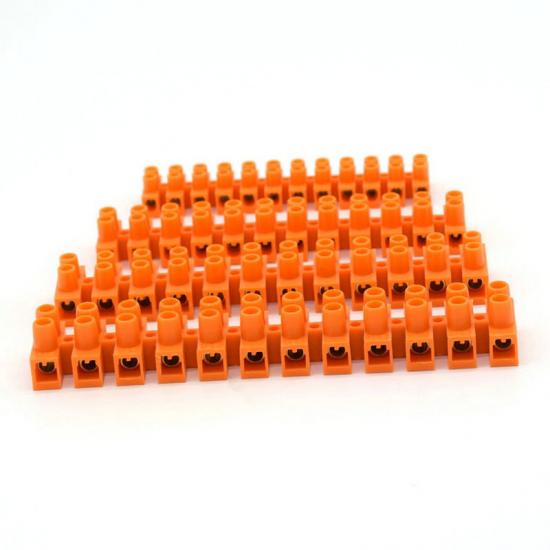

Screw Electrical Terminal Block Connectors

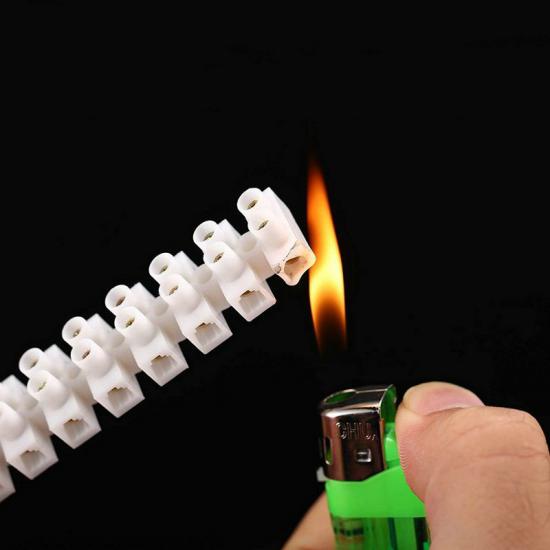

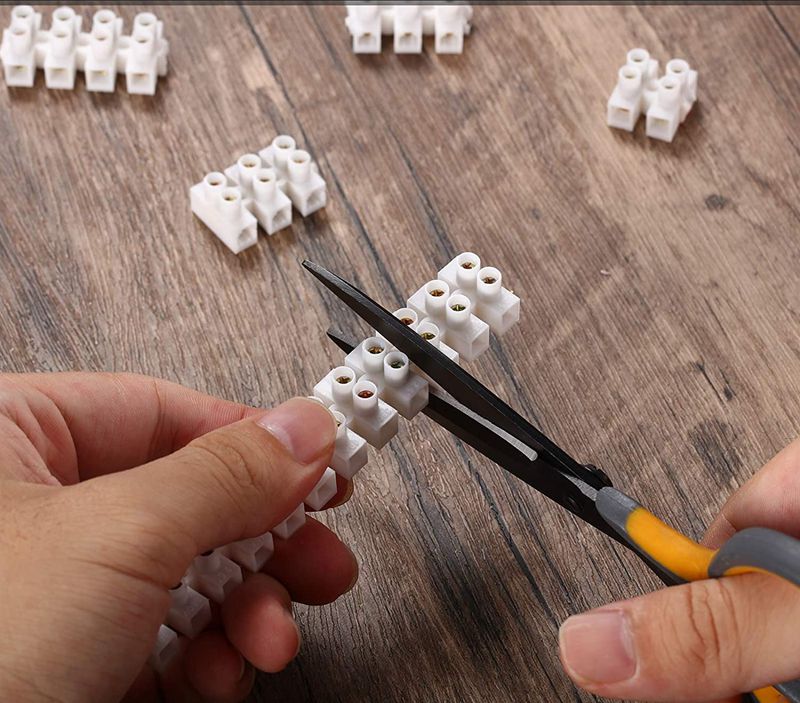

Wire connector strip are made of Insulated PE shell,these block connectors adopt flame-retardant PP material shell, which feature with insulation, corrosion resistance and wear resistance,with high performance of electrical conductivity
The plated zinc alloy screws and copper-plated zinc alloy terminals have excellent stability and conductivity, can serve you for a long time.

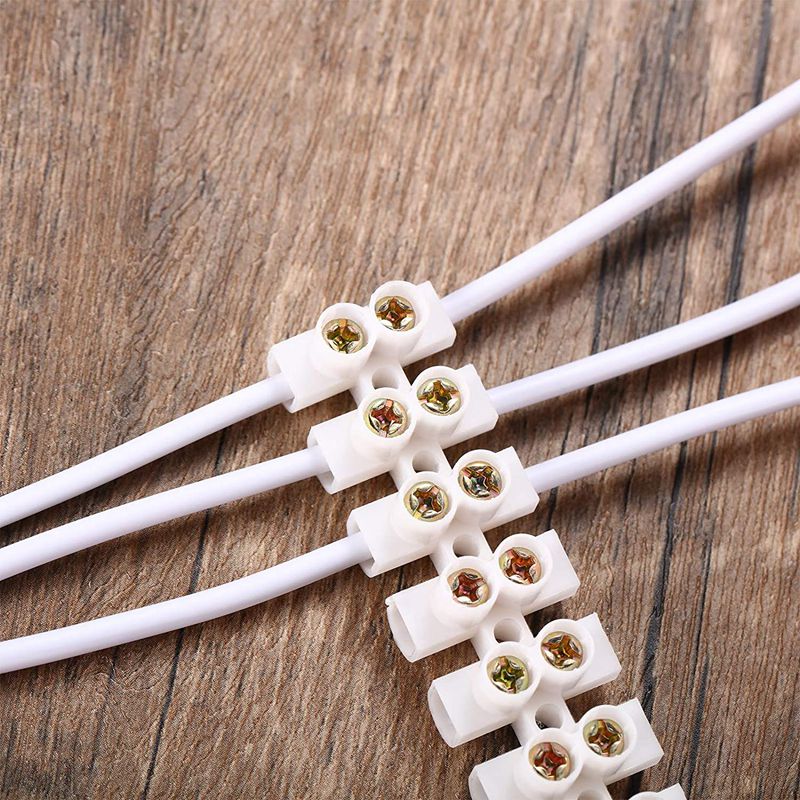

The set screws secure wires reliable contact, and help prevent accidental contact with the terminals,these dual row screw terminals can be applied for the link of lighting lamps, household appliances, electrical control, power supply, electrical maintenance, electrical machinery and more
Physical properties
| Style | Screw terminal wire connectors |
| Type | H type,dual row |
| Shell material | PE |
| Conductor material | Brass |
| Screw material | Steel,zinc plated |
| Volt | 380V~450V |
| Amp | 3A~100A |
| Working temperature |
-40℃ to 65℃
|

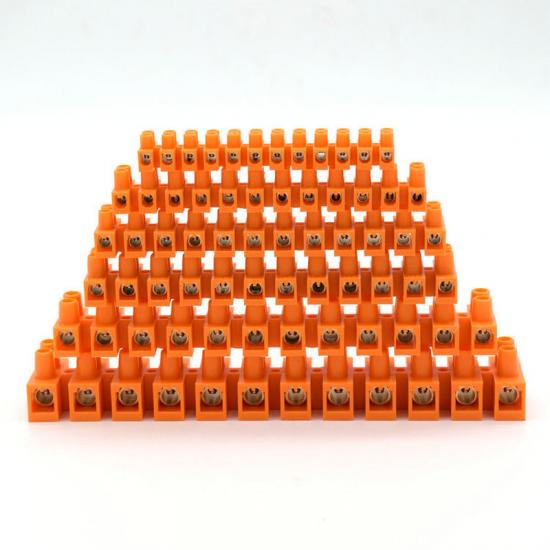

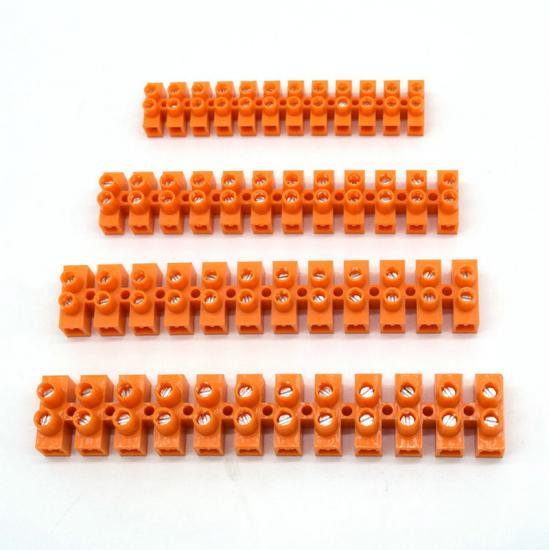

| Standard color | Natural,black,red,green,yellow,blue |
Specification

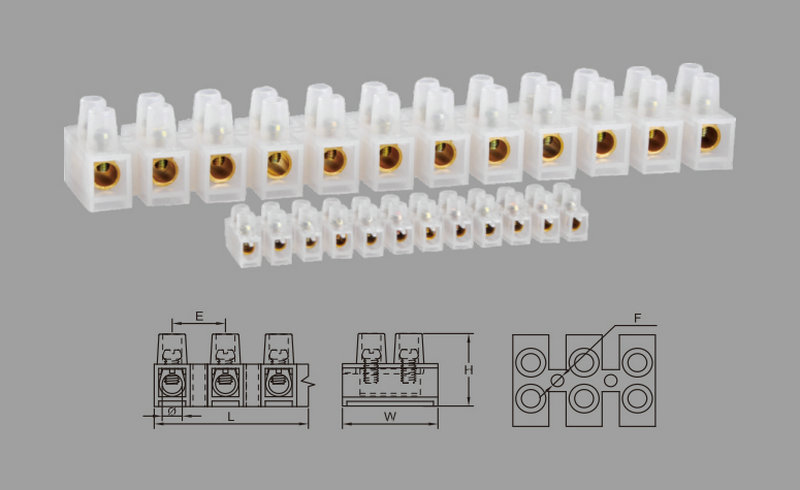

| Part No | Wire Range | Amp | Volt | L | W | H | E | F |
Φ |
Screw Size |
PCS/CTN |
|
mm |
|||||||||||
| SP001-01 | 2.5~4.0mm² | 3A | 380V | 92.3 | 16.8 | 12.3 | 7.8 | 2.4 | 3.0 | M2.5 | 1000 |
| SP001-02 |
4.0~6.0mm² |
6A | 380V | 115.4 | 18.8 | 15.4 | 9.6 | 2.7 | 3.3 | M3.0 | 1000 |
| SP001-03 |
6.0~10.0mm² |
10A |
380V |
129.3 | 20.7 | 16.5 | 11.0 | 2.8 | 4.2 | M3.0 | 500 |
| SP001-04 | 10.0~12.0mm² | 15A |
380V |
137.8 | 22.5 | 18.6 | 11.7 | 3.1 | 4.5 | M3.5 | 500 |
| SP001-05 | 12.0~14.0mm² | 20A |
380V |
138.0 | 22.5 | 19.0 | 12.0 | 3.2 | 4.7 | M4.0 | 400 |
| SP001-06 | 16.0mm² | 30A |
380V |
164.0 | 22.5 | 20.0 | 13.7 | 3.4 | 5.5 | M4.0 | 300 |
| SP001-07 | 25.0mm² | 60A |
380V |
186.0 | 29.2 | 25.3 | 15.7 | 3.3 | 6.6 | M5.0 | 200 |
| SP001-08 | 35.0mm² | 80A |
400V |
226.8 | 36.1 | 29.0 | 19.2 | 4.0 | 8.0 | M5.0 | 100 |
| SP001-09 | 40.0mm² | 100A |
450V |
254.6 | 45.0 | 34.7 | 20.5 | 3.7 | 9.0 | M6.0 | 50 |

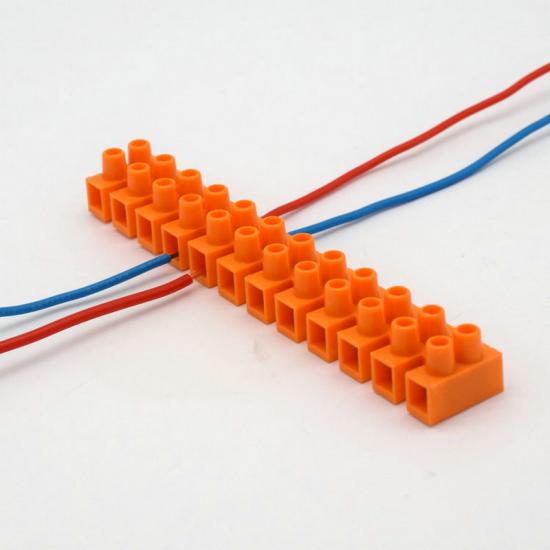

Application
Screw terminal block connector widely use for lamp,decorated lighting, factory,household appliances and power distribution cabinets, distribution boxes and other transmission equipment.
