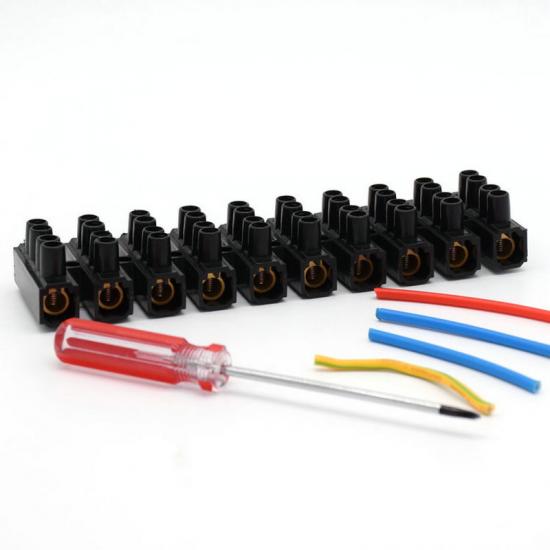

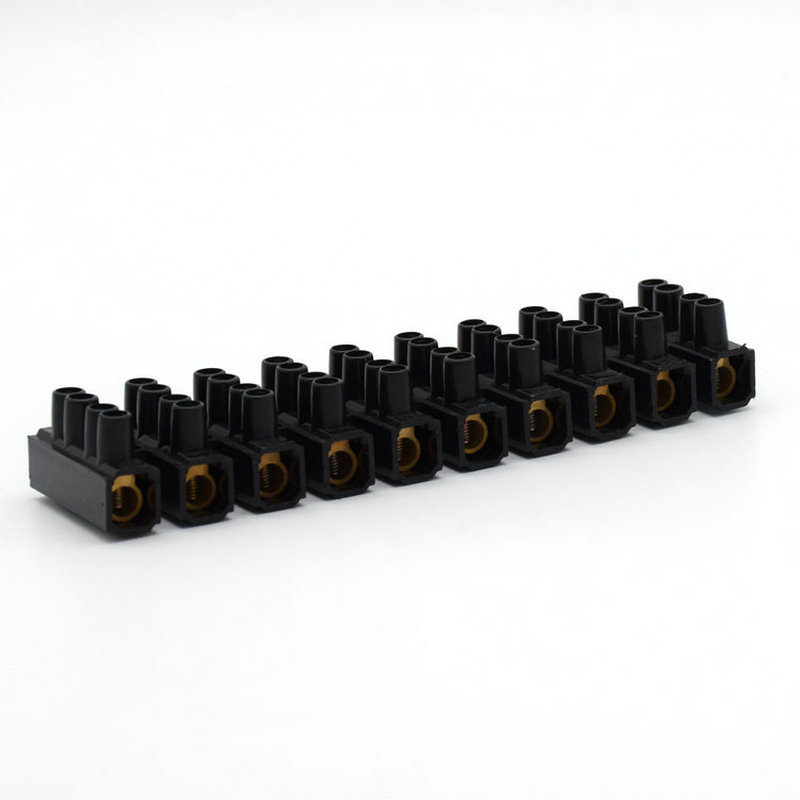

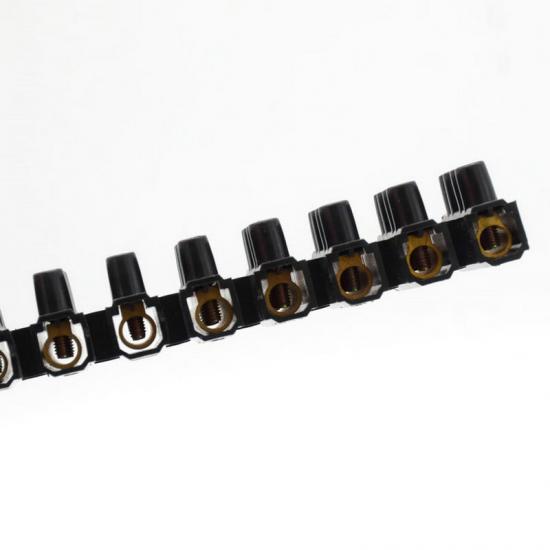

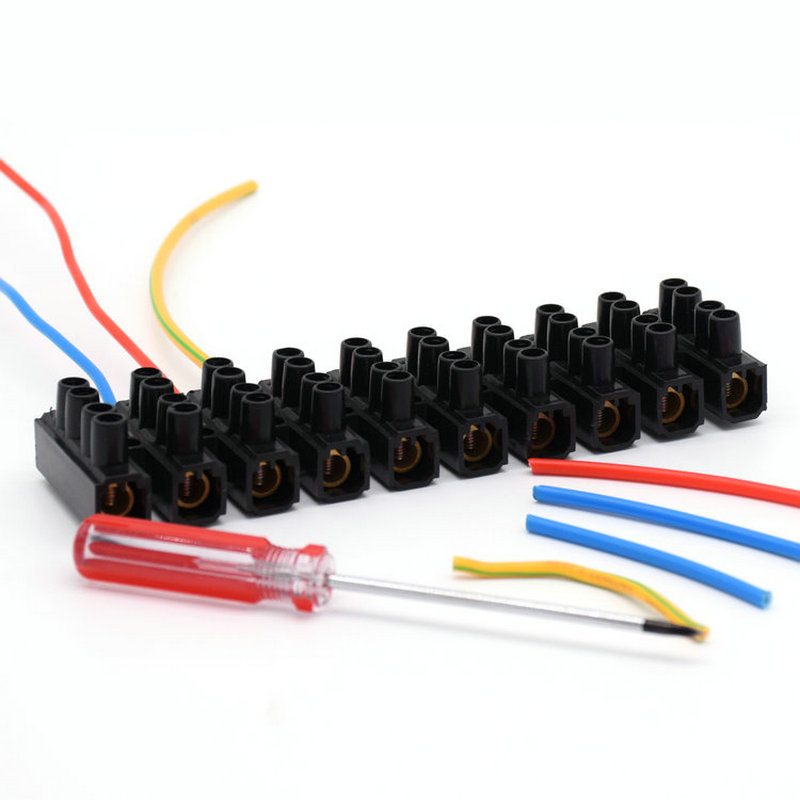

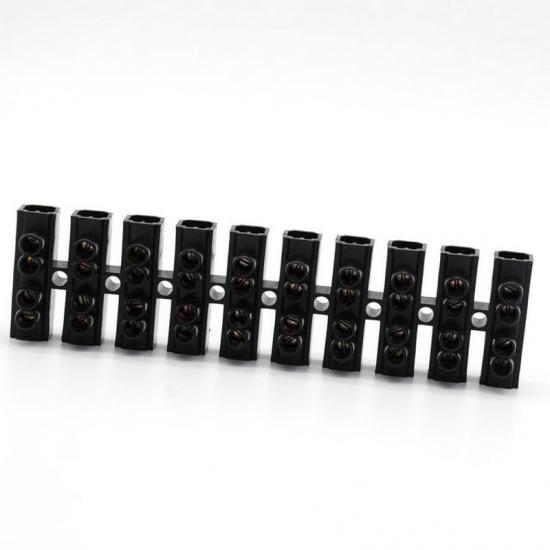

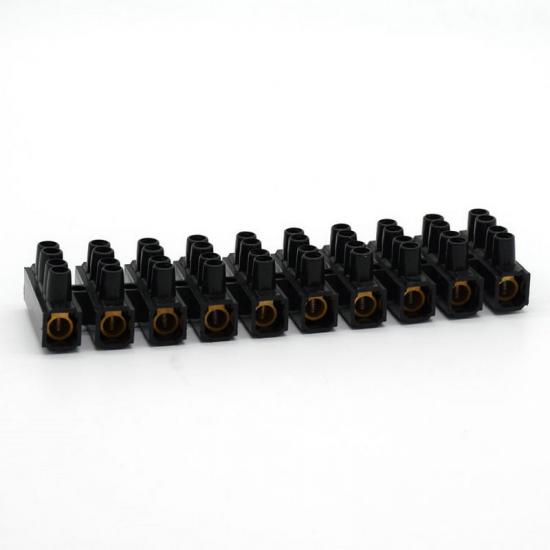

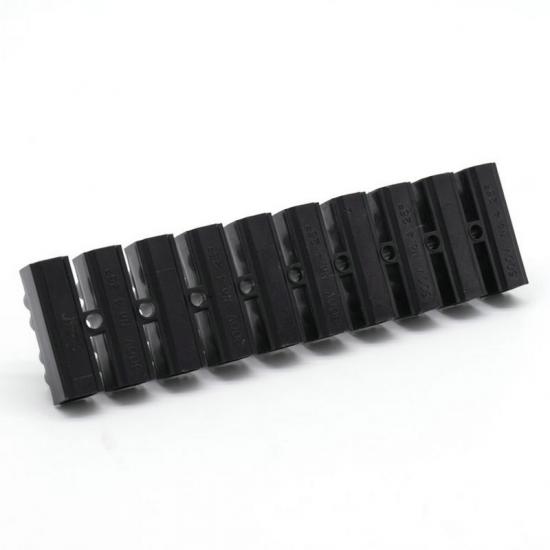

Feed Through Electrical Terminal Block Connector
This kind feed through terminal block adopt PE or flame-retardant PA, PP material shell, which feature with insulation, corrosion resistance and wear resistance; They can withstand temperature from -40℃ to 65℃, have nice electrical conductivity.
The plated zinc alloy screws and copper-plated zinc alloy terminals have excellent stability and conductivity, can serve you for a long time.
The set screws secure wires reliable contact, and help prevent accidental contact with the terminals.
What's special of our electrical terminal block
1.100% new PE,PP,PA material, not including any recycle material
2.Insulated flame-retardant shell
3.Crimping performance
4.Easy to install
5.Multi-purpose
6.Safe to use
Physical properties
| Shell material | PE,PP,PA |
| Conductor material | Brass |
| Screw material | Zinc plated steel |
| Working temperature | PE:-40℃~65℃ |
| pp:-30℃~90℃ | |
|
PA:-35℃~125℃ |
|
| Wire range | 10m㎡~25m㎡ |
| Amp | 10A~60A |
| Volt | 500V |
| Standard color | Black |
| Certification | ROHS,CE |
Specification

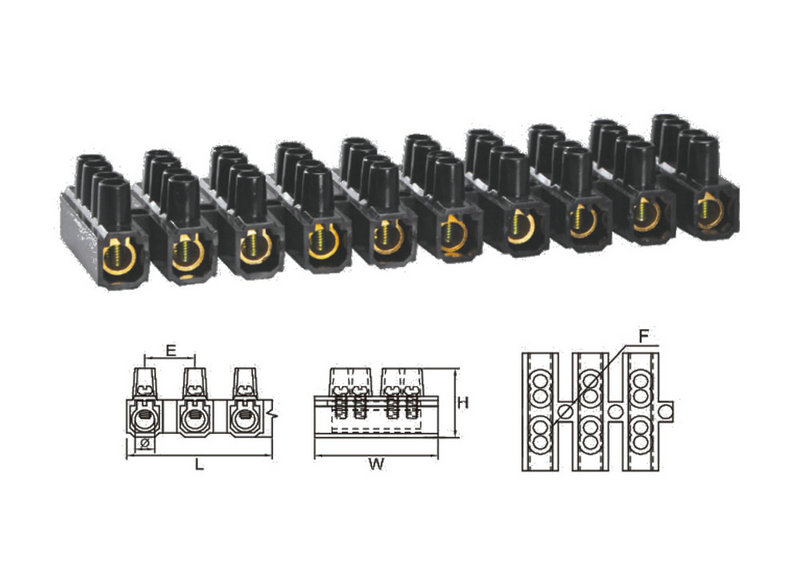

| Part No | Wire Range | Amp | Volt | L | W | H | E | F |
Φ |
Screw Size | Packing |
|
mm |
|||||||||||
| MJ-SP008-01 |
10m㎡ |
10A | 500V | 130.5 | 21.2 | 16.6 | 11.0 | 3.2 | 4.4 | M3.0 | 400 pcs/ctn |
|
MJ-SP008-02 |
16m㎡ |
30A | 500V | 167.0 | 27.0 | 21.0 | 14.0 | 3.6 | 5.7 | M4.0 |
300 pcs/ctn |
|
MJ-SP008-03 |
25m㎡ |
60A | 500V | 165.0 | 42.0 | 24.6 | 17.0 | 4.7 | 6.8 | M4.0 | 180 pcs/ctn |
Application
Terminal block connector to be used for variety of lamp, decorated lighting, factory and power distribution cabinets, distribution boxes and other transmission equipment. It works pretty good for the small around the house projects like such as wiring for lawn sprinkler, home stereo system.
