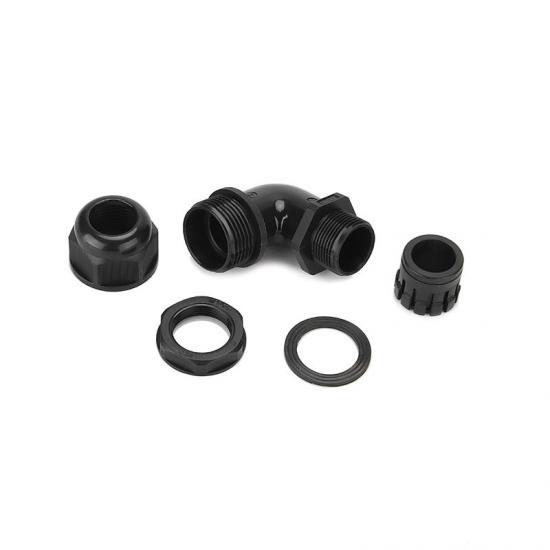

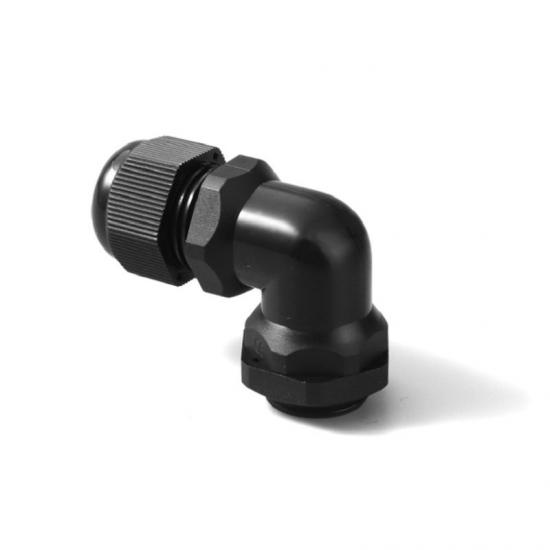

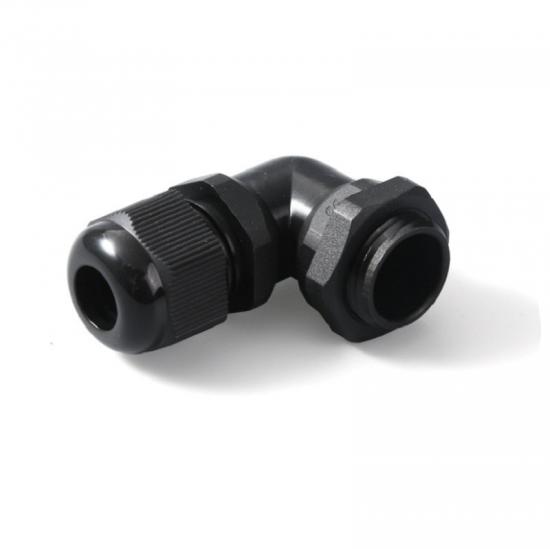

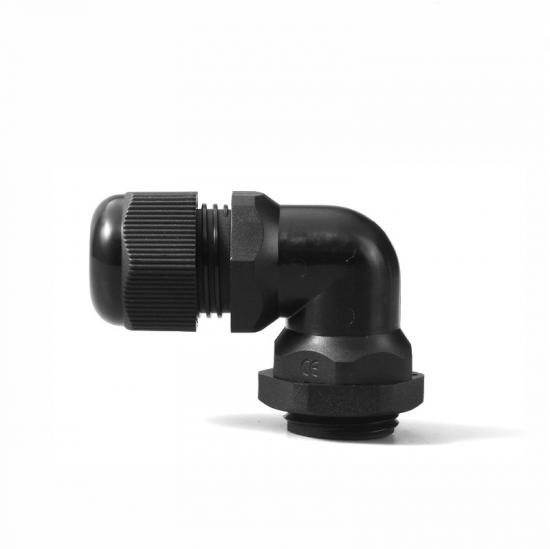

90 Degree Waterproof IP68 Nylon Elbow Cable Gland
90 degree cable gland made from nylon material; waterproof rated up to IP68, which is waterproof, dust-proof, anti-acid, anti-alcohol and so on; right angle cable gland easy to install, and help you clamping cable.
These strain relief cable glands are used to secure your cables to plugs, terminals, enclosures, and various types of electrical equipment and appliances.

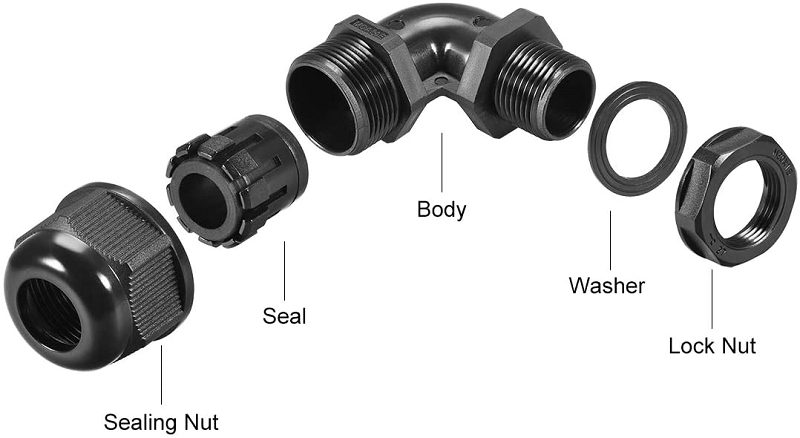

What's special about cable strain relief connector?
1.Made of 100% new nylon,not including any recycle material

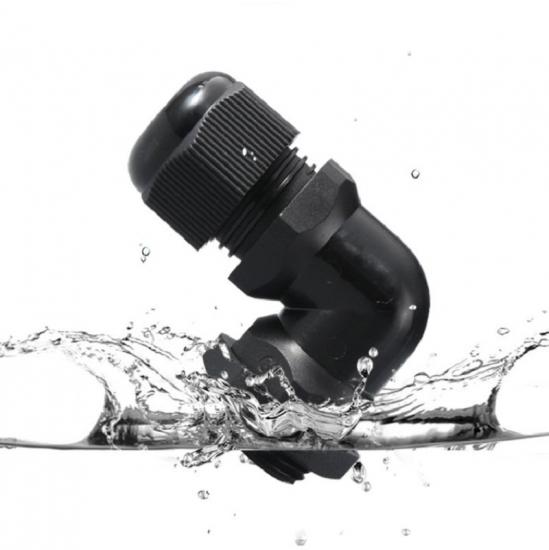

2.IP68 waterproof rating
3.Integrated strain relief
4.Click fit easy mounting
5.Resistant to UV rays
6.Flame retardant
7.Dust-proof, Anti-acid, Anti-alcohol and so on
8.Easy to install, and help you clamping cable
Physical Properties
| Material | PA66 |
| Working Temperature |
-40℃~100℃ |
| Tread Style | Metric |
| Waterproof Rating | IP68 |
|
Flammability |
UL94V2 |
| Available size | Full size |
| Standard Color | Black,Light Grey |
| Colored | Available |
| Certification | UL,ROHS,Reach |
| Cutting Tool | Scissor |
Application
Elbow cable gland provide a professional finish look and are commonly used for all types of automotive, electrical, machinery, and industrial wires and cables.
It ideal accessory for junction boxes etc or anything where inserting a cable could cause water to enter into live electrics, using the correct IP68 rated cable compression gland will ensure the item stays waterproof.
Specification
| Part No | Thread Size |
Cable Range (mm) |
Thread OD (mm) |
Thread Length (mm) |
Spanner Size (mm) |
| M12 | M12*1.5 | 3.0~5.5 | 12.0 | 8.5 | 22/22 |
| M12 |
M12*1.5 |
4.0~8.0 | 12.0 | 8.5 | 22/22 |
| M16 |
M16*1.5 |
4.0~7.0 | 16.0 | 10.0 | 22/22 |
| M16 |
M16*1.5 |
6.0~10.0 | 16.0 | 10.0 | 22/22 |
| M20 |
M20*1.5 |
6.0~11.0 | 20.0 | 15.0 | 27/27 |
| M20 |
M20*1.5 |
9.0~14.0 | 20.0 | 15.0 | 27/27 |
| M25 |
M25*1.5 |
10.0~16.0 | 25.0 | 15.0 | 33/33 |
| M25 |
M25*1.5 |
13.0~18.0 | 25.0 | 15.0 | 33/33 |
| M32 |
M30*1.5 |
15.0~22.0 | 30.0 | 15.0 | 41/42 |
| M32 |
M30*1.5 |
18.0~25.0 | 30.0 | 15.0 | 41/42 |
| M40 |
M40*1.5 |
20.0~26.0 | 40.0 | 20.0 | 50/52 |
| M40 |
M40*1.5 |
24.0~31.0 | 40.0 | 20.0 | 50/52 |
| M50 |
M50*1.5 |
25.0~33.0 | 50.0 | 20.0 | 50/52 |
| M50 |
M50*1.5 |
33.0~41.0 | 50.0 | 20.0 | 50/52 |
