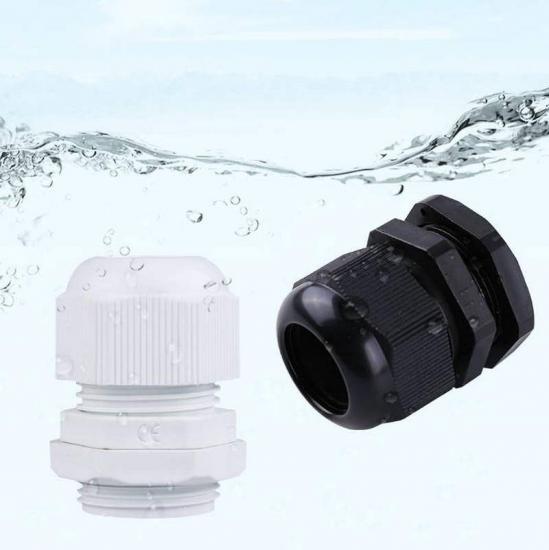

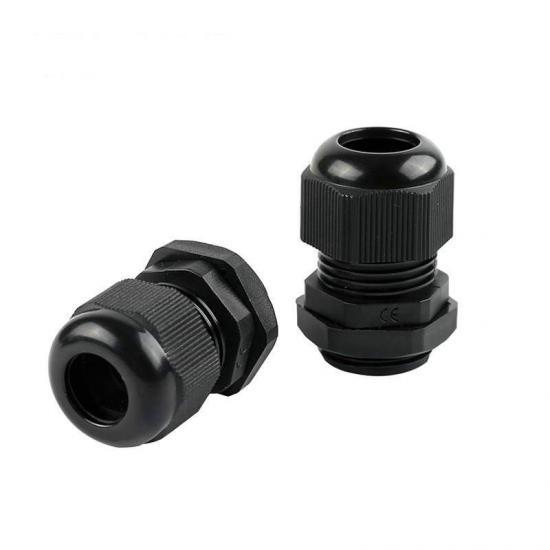

IP68 UL Listed Nylon Npt Cable Gland
Npt cable glands made from nylon PA66 plastic which has superior heat resistance and abrasion resistance. Suitable for kinds of electrical application scenarios.
IP68 rated protection that withstands dust, dirt and sand,the waterproof rating meets continuous immersion standards of more than 3 feet 3 inches.
nylon cable glands are used on cable fixing, junction box connection, distribution panels, and electrical appliances etc.
What's special about our npt glands?
1.Made of 100% new nylon,not including any recycle material
2.IP68 waterproof rating
3.Flame retardant
4.Resistant against light acids and soft lyes
5.Resistant against seawater, benzine and mineral oil
6.High tensile strength
Physical Properties
| Material | PA66+NBR |
| Working Temperature |
-40℃~100℃ |
| Tread Style | Npt |
| Waterproof Rating | IP68 |
|
Flammability |
UL94V2 |
| Size Range | Npt 3/8"~Npt 1-1/2" |
| Standard Color | Black,Light Grey |
| Colored | Available |
| Certification | UL,ROHS,Reach |
| Cutting Tool | Scissor |
Application
Npt glands is used where a bunch of wires and cables need to be inserted or prevent water from entering into any live electrics. Perfect to use on electrical appliances like junction box, electrical case, wiring, cable fixing, bulkhead mounting, mechanical control box, switchboard, etc

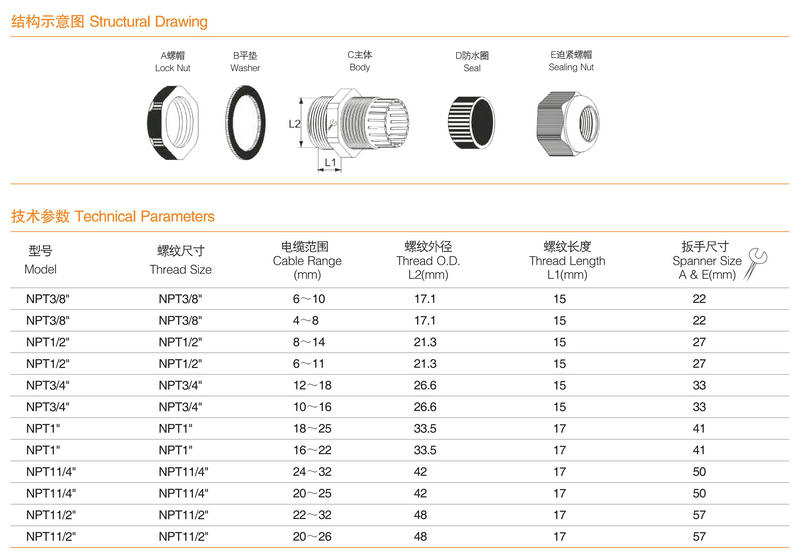

Specification
