Nylon Plastic IP68 Waterproof Pg Cable Gland Connector

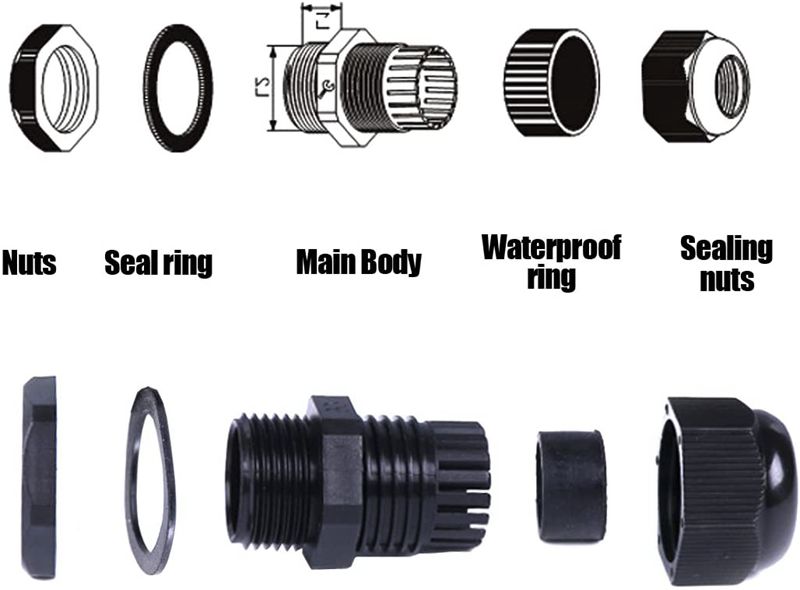

Plastic Cable Glands made from high quality nylon plastic ,acid, alkali and alcohol resistant, eat resistant, flame retardant etc fitted with locknut and washer to seal around your wires, waterproof and dust-proof.

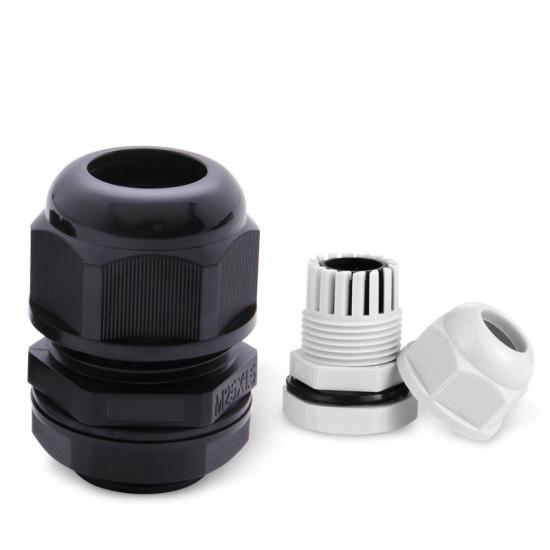

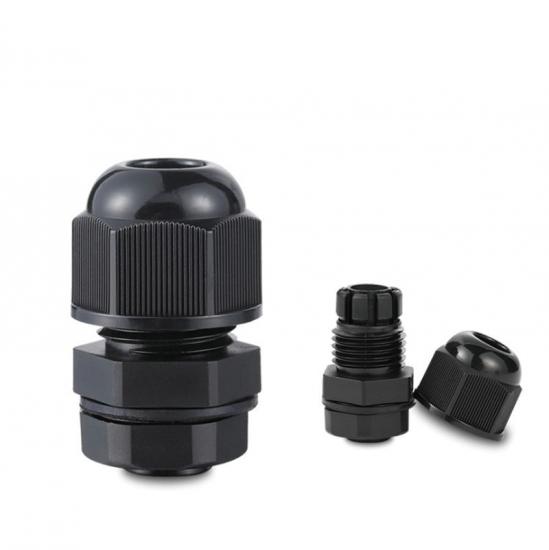

IP68 cable gland connector easy to install-not need to disengage the fix terminal, cable can be inserted through directly then tighten easy, the other end of the joints can be either connected with the housing of equipments;
It wildly use to cable fixing- wire splices, machinery control boxes, distribution panels, and electrical appliances etc;
What's special about waterproof cable glands?
1.Made of 100% new nylon,not including any recycle material
2.IP68 waterproof rating
3.Flame retardant
4.Resistant against light acids and soft lyes
5.Resistant against seawater, benzine and mineral oil
Physical Properties
| Material | PA66 |
| Working Temperature |
-40℃~100℃ |
| Tread Style | Pg |
| Waterproof Rating | IP68 |
|
Flammability |
UL94V2 |

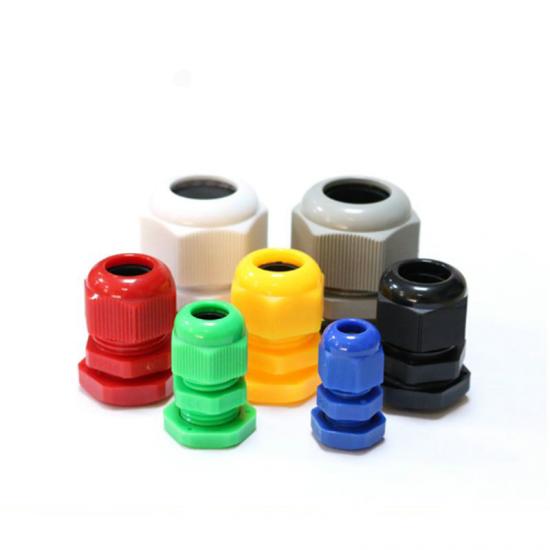

| Standard Color | Black,Light Grey |
| Colored | Available |
| Certification | UL,ROHS,Reach |
| Cutting Tool | Scissor |

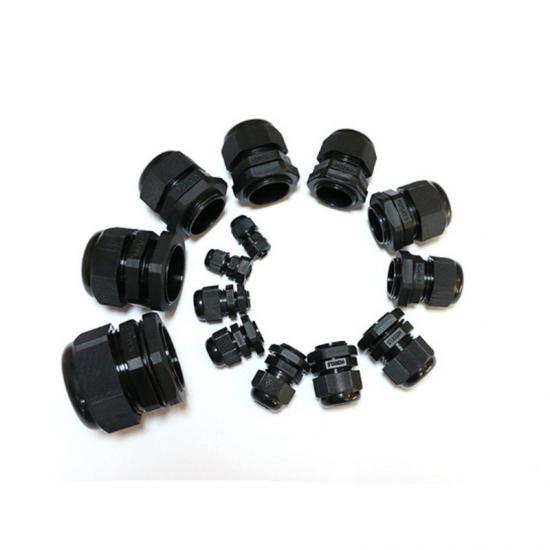

Specification
| Model |
Thread |
Cable Range Φ(mm) |
Thread O.D AG(mm) |
Thread Length GL(mm) |
Spanner Size A&F(mm) |
| PG7 | PG7 | 3~6.5 | 12.5 | 9 | 18/16 |
|
PG7 |
PG7 | 2~5 | 12.5 | 9 | 18/16 |
| PG9 | PG9 | 4~8 | 15.2 | 9 | 22/19 |
| PG9 | PG9 | 2~6 | 15.2 | 9 | 22/19 |
| PG11 | PG11 |
5~10 |
18.6 | 9 | 24/22 |
| PG11 | PG11 |
3~7 |
18.6 | 9 | 24/22 |
| PG13.5 | PG13.5 | 6~11 | 20.4 |
10 |
27/24 |
| PG13.5 | PG13.5 |
5~9 |
20.4 |
10 |
27/24 |
| PG16 | PG16 |
10~13 |
22.5 | 10 | 30/27 |
| PG16 | PG16 |
7~12 |
22.5 | 10 | 30/27 |
| PG19 |
PG19 |
12~15 | 24 | 10 | 30/28 |
|
PG19 |
PG19 |
10~12 | 24 | 10 | 30/28 |
|
PG21 |
PG21 |
13~18 |
28.3 | 12 | 35/33 |
| PG21 |
PG21 |
9~16 | 28.3 | 12 | 35/33 |
| PG25 |
PG25 |
16~21 |
30 | 12 | 37/35 |
|
PG25 |
PG25 |
13~18 | 30 | 12 | 37/35 |
| PG29 |
PG29 |
18~25 |
37 | 12 | 45/42 |
|
PG29 |
PG29 |
13~20 |
37 | 12 | 45/42 |
| PG36 |
PG36 |
22~32 | 47 | 15 | 58/52 |
|
PG36 |
PG36 |
20~26 | 47 | 15 | 58/52 |
| PG42 |
PG42 |
32~38 | 54 | 18 | 62/58 |
|
PG42 |
PG42 |
25~31 | 54 | 18 | 62/58 |
| PG48 |
PG48 |
37~44 | 59.3 | 18 | 70/64 |
|
PG48 |
PG48 |
29~35 | 59.3 | 18 | 70/64 |
| PG63 |
PG63 |
42~50 | 71 | 30 | 83/77 |
|
PG63 |
PG63 |
32~40 | 71 | 30 | 83/77 |

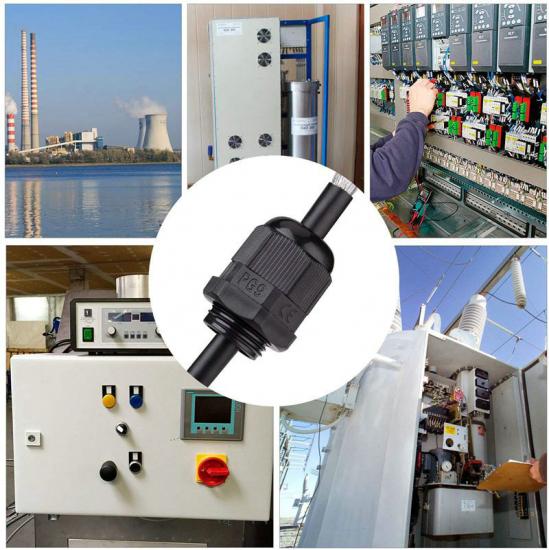

Application
PG cable gland use for cable fixing, wiring, mechanical control box, switchboard, electrical appliances, etc. The ideal kit for your project needs.
