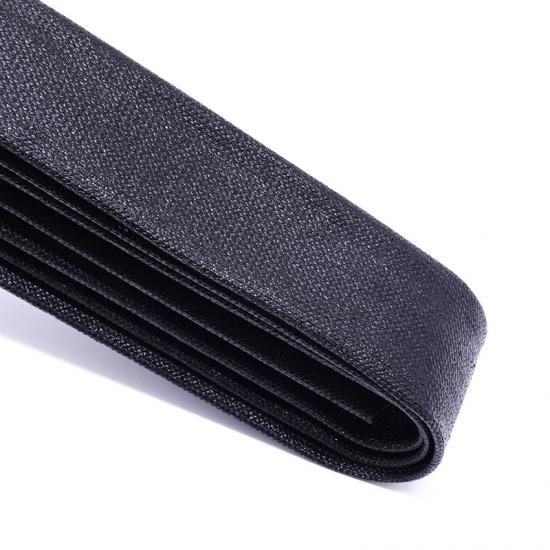

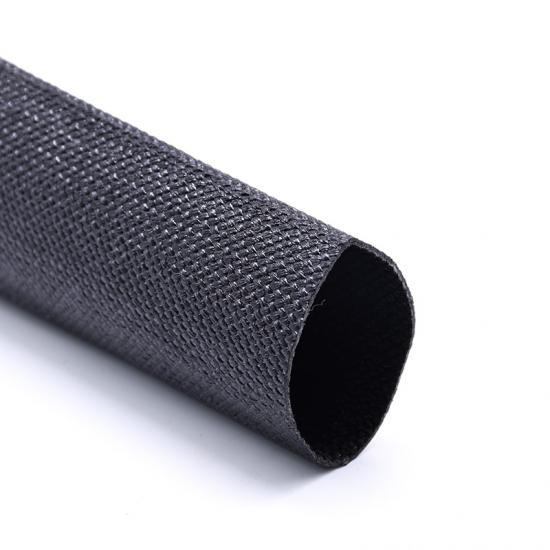

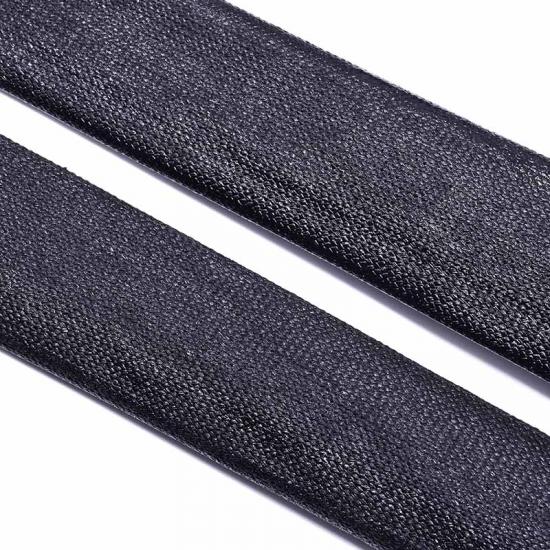

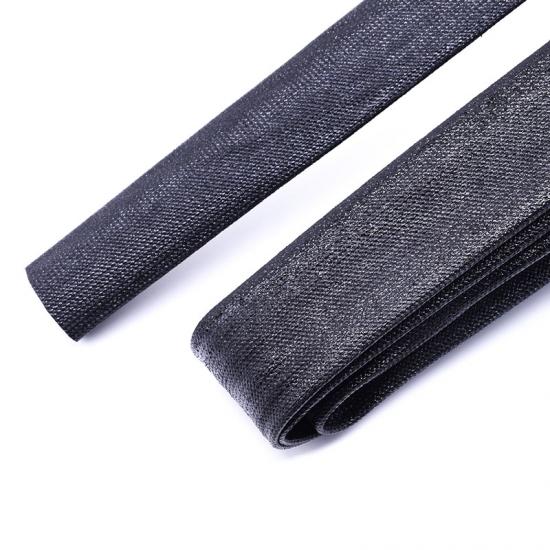

Acrylic Coated Fiberglass Insulation Sleeving
Acrylic coated fiberglass sleeving is a heat-treated, tightly braided fiberglass sleeving coated with a dielectric acrylic resin. This durable sleeving will withstand mechanical stress and holds it's dielectric strength on all bends.
It has excellent flexibility, cut-through and mechanical abrasion resistance and is rated class 155ºC electrically. Acrylic sleeving is the work-horse of the motor, transformer and lighting industries.
Feactures and benefits
1.155° C temperature rating
2.Resists solvents and engine fluids
3.Lightweight and flexible
4.Cuts easily with scissors
5.High abrasion resistance
6.Contains no asbestos
7.Non-corrosive to metals
8.Excellent resistance to moisture, fungus and chemical attack
9.Grade A, Grade C Dielectric strength
Physical Properties
Sleeve material | Fiberglass fiber |
Coated material | Acrylic resin |
Working Temperature |
-50℃ to 155℃ |
Temperature endurance | 190℃+(-)2℃ |
Aging Test | 6 hours without crackle |
Cold bend | Without crackle |
Grade |
Grade A,Grade B,Grade C |
Flammability |
VW-1 |
Standard Color | White,Black |
Colored | Available |
Certification | UL,ROHS,Reach |
Cutting Tool | Scissor |
Application
Acylic fiberglass sleeving used in applications such as relays, radio circuits, transformers, and lead/crossover protection on motors. Highly resistant to acids and solvents, and will withstand tough assembly handling.
Specification
Size(ID)
(mm)
Packing Length
(m/spool)
Part No
Tolerance(mm)
Thickness(mm)
Grade A
Grade B/C
MJ-FGS-AC0.5
0.5
+0.25/-0.1
0.38±0.05
0.20±0.05
200
MJ-FGS-AC0.8
0.8
+0.25/-0.1
0.38±0.05
0.20±0.05
200
MJ-FGS-AC1.0
1.0
+0.25/-0.1
0.38±0.05
0.20±0.05
200
MJ-FGS-AC1.5
1.5
+0.25/-0.1
0.38±0.05
0.20±0.05
200
MJ-FGS-AC2.0
2.0
+0.25/-0.1
0.38±0.05
0.20±0.05
200
MJ-FGS-AC2.5
2.5
+0.25/-0.1
0.38±0.05
0.20±0.05
200
MJ-FGS-AC3.0
3.0
+0.3/-0.1
0.45±0.05
0.23±0.05
100
MJ-FGS-AC3.5
3.5
+0.3/-0.1
0.45±0.05
0.23±0.05
100
MJ-FGS-AC4.0
4.0
+0.3/-0.1
0.45±0.05
0.23±0.05
100
MJ-FGS-AC4.5
4.5
+0.3/-0.1
0.45±0.05
0.23±0.05
100
MJ-FGS-AC5.0
5.0
+0.4/-0.1
0.45±0.05
0.28±0.05
100
MJ-FGS-AC5.5
5.5
+0.4/-0.1
0.45±0.05
0.28±0.05
100
MJ-FGS-AC6.0
6.0
+0.4/-0.1
0.45±0.05
0.28±0.05
100
MJ-FGS-AC7.0
7.0
+0.55/-0.1
0.50±0.05
0.32±0.05
100
MJ-FGS-AC8.0
8.0
+0.55/-0.1
0.50±0.05
0.32±0.05
50
MJ-FGS-AC9.0
9.0
+0.55/-0.1
0.50±0.05
0.32±0.05
50
MJ-FGS-AC10.0
10.0
+0.75/-0.1
0.60±0.05
0.40±0.05
50
MJ-FGS-AC11.0
11.0
+0.75/-0.1
0.60±0.05
0.40±0.05
50
MJ-FGS-AC12.0
12.0
+0.75/-0.1
0.60±0.05
0.40±0.05
50
MJ-FGS-AC13.0
13.0
+0.75/-0.1
0.60±0.05
0.40±0.05
50
MJ-FGS-AC14.0
14.0
+0.75/-0.1
0.60±0.05
0.40±0.05
50
MJ-FGS-AC15.0
15.0
+0.85/-0.1
0.64±0.05
0.43±0.05
50
MJ-FGS-AC16.0
16.0
+0.85/-0.1
0.64±0.05
0.43±0.05
50
MJ-FGS-AC17.0
17.0
+0.85/-0.1
0.64±0.05
0.43±0.05
50
MJ-FGS-AC18.0
18.0
+0.85/-0.1
0.64±0.05
0.43±0.05
50
MJ-FGS-AC19.0
19.0
+0.85/-0.1
0.64±0.05
0.43±0.05
50
MJ-FGS-AC20.0
20.0
+0.85/-0.1
0.64±0.05
0.43±0.05
50
MJ-FGS-AC25.0
25.0
+0.85/-0.1
0.64±0.05
0.43±0.05
50
